GV7AD111

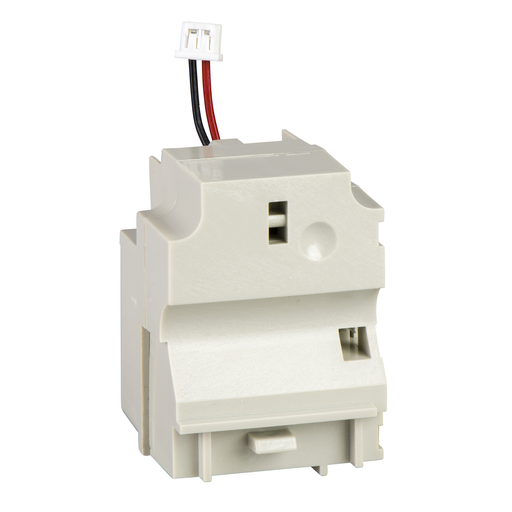

TeSys GV7 – fault discrimination device – 24-48 V AC/DC
TeSys GV fault discrimination device, for motor circuit breakers GV7. It makes possible to differentiate between a thermal fault and a magnetic fault. Electronic module to be supplied in 24-48V AC 50/60Hz or 24-72V DC. To be plugged inside the circuit breaker, it takes the same cavity as the one used for the trip unit, connection by screw terminals. Green Premium compliant (RoHS/REACh).
Add to Quote CatalogueSpecifications
| Part Number | GV7AD111 |
|---|---|
| Country of Origin | FR |
| UPC | 785901567288 |
| UPC11 | 78590156728 |
| GTIN | 3389110567281 |
| EAN | 3389110567281 |
| Availability | N |
| Lead Time | 27 |
| UNSPSC | 39121521 |
| HTs Code | 8538908180 |
| Discount Schedule | I11 |
| Return Indicator | No |
| Weight | 0.22 pound |
| Gross Weight | 0.08 |
| Gross Weight UOM | Lbs |
| Pkg Length | 1.58 |
| Pkg Length UOM | In |
| Pkg Height | 1.97 |
| Pkg Height UOM | In |
| Pkg Width | 2.05 |
| Pkg Width UOM | In |
Characteristics
| Range | TeSys |
|---|---|
| Product Or Component Type | Fault discrimination device |
| Range Compatibility | TeSys GV7 |
| Function Available | Differentiation of thermal overload and magnetic fault |
| Mounting Location | Inside of the front panel |
| Auxiliary Contacts Operation | Fault signal |
| Ue Rated Operational Voltage | 24 V DC control circuit 72 V DC control circuit 24 V AC 50/60 Hz control circuit 48 V AC 50/60 Hz control circuit |
| Product Weight | 0.22 lb(US) (0.1 kg) |
| Quantity Per Set | Set of 10 |
| Category | 22366 - MAN STR PROTECTORS-GV1/GV3 |
| Discount Schedule | I11 |
| GTIN | 00785901567288 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | FR |
| EU RoHs Directive | Compliant |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
