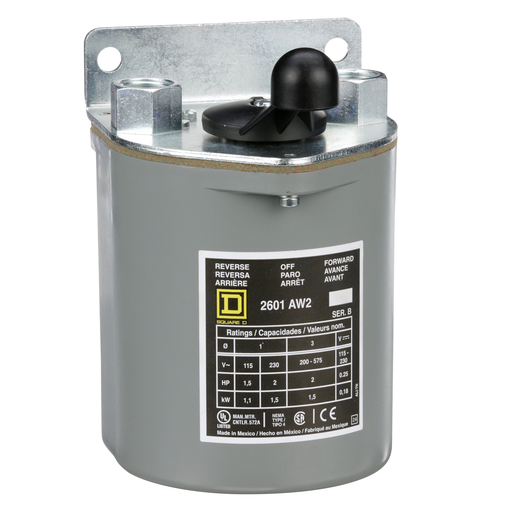

2601AW2
Switch, reversing drum, 2 HP at 230 VAC single phase, 2 HP at 575 VAC polyphase, handle operated, NEMA 4 enclosure
2601 reversing drum switches are designed to start and reverse motors by connecting them directly across the line. The devices can be used with squirrel cage and single-phase motors designed for reversing service. Can be used with AC or DC motors. Drum switches are field convertible from maintained to momentary operation. A variety of enclosures are available. This device has a NEMA 4 watertight enclosure. Drum switches are UL listed and CSA certified for global applications.
Brand: Square D
Add to Quote CatalogueSpecifications
| Part Number | 2601AW2 |
|---|---|
| Country of Origin | MX |
| UPC | 785901784432 |
| UPC11 | 78590178443 |
| EAN | 0785901784432 |
| Availability | S |
| Lead Time | 5 |
| UNSPSC | 39122207 |
| HTs Code | 8536509025 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| Discount Schedule | CP1 |
| Return Indicator | Yes |
Characteristics
| Product | Reversing Drum Switch |
|---|---|
| Enclosure Rating | NEMA 4 |
| Horsepower | 1.5 hp 115 V AC, 1 phase 2 hp 230 V AC, 1 phase 2 hp 200 V AC, 3 phase 2 hp 230 V AC, 3 phase 2 hp 460 V AC, 3 phase 2 hp 575 V AC, 3 phase 0.25 hp 115 V DC 0.25 hp 230 V DC |
| Maximum Rated Voltage | 600 V AC 250 V DC |
| Number Of Poles | 3P |
| Certifications | CSA UL Listed |
| Electrical Connection | Screw-clamp terminals |
| Type | A |
| Category | 21116 - 2601 |
| Discount Schedule | CP1 |
| GTIN | 00785901784432 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| EU RoHs Directive | Not compliant |
| Warranty | 18 months |
