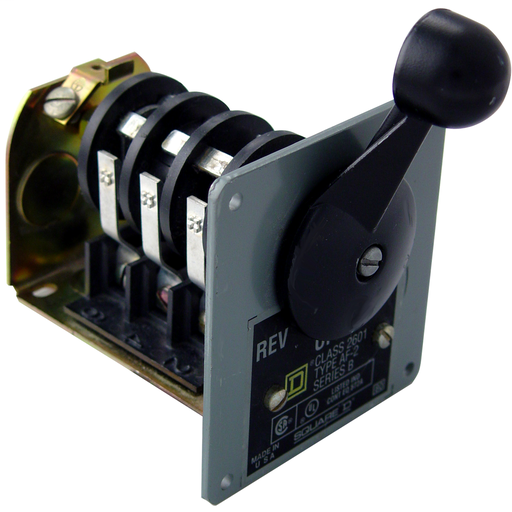

Switch, reversing drum, 2 HP at 230 VAC single phase, 2 HP at 575 VAC polyphase, handle operated, NEMA 13 flush
2601AF2
Switch, reversing drum, 2 HP at 230 VAC single phase, 2 HP at 575 VAC polyphase, handle operated, NEMA 13 flush

2601 reversing drum switches are designed to start and reverse motors by connecting them directly across the line. The devices can be used with squirrel cage and single phase motors designed for reversing service. Can be used with AC or DC motors. Drum switches are field convertible from maintained to momentary operation. The maximum operational voltage is 600 VAC and 250 VDC. This 3 pole drum switch is rated for 1.5 HP at 115 VAC, 2 HP at 230 VAC, single phase, 2 HP at 230 VAC, 2 HP at 575 VAC, three phase, and 0.25 HP up to 600 VDC. The binder head screw terminals will accept 18 to 10 AWG copper wire. This switch has no pilot light indicator. A variety of enclosures are available. This device has a NEMA 13 oiltight flush mounting enclosure. This drum switch is 5.20 inches tall, 3.38 inches wide and 5.58 inches deep. Drum switches are UL listed and CSA certified for global applications.

Brand: Square D

Add to Quote Catalogue
Specifications
Part Number 2601AF2
Country of Origin MX
UPC 785901015024
UPC11 78590101502
EAN 0785901015024
Availability N
Lead Time 5
UNSPSC 39122207
HTs Code 8536509025
Prop 65 This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
Discount Schedule CP1
Return Indicator Yes
Depth 5.58 inch
Height 5.20 inch
Width 3.38 inch
Characteristics
Product Reversing Drum Switch
Enclosure Rating NEMA 13
Horsepower 1.5 hp 115 V AC, 1 phase 2 hp 230 V AC, 1 phase 2 hp 200 V AC, 3 phase 2 hp 230 V AC, 3 phase 2 hp 460 V AC, 3 phase 2 hp 575 V AC, 3 phase 0.25 hp 115 V DC 0.25 hp 230 V DC
Maximum Rated Voltage 600 V AC 250 V DC
Number Of Poles 3P
Certifications UL Listed CSA
Electrical Connection Screw-clamp terminals
Type A
Width 3.38 in (85.85 mm)
Height 5.20 in (132.08 mm)
Depth 5.58 in (141.73 mm)
Category 21116 - 2601
Discount Schedule CP1
GTIN 00785901015024
Nbr. Of Units In Pkg. 1
Country Of Origin MX
EU RoHs Directive Not compliant
Warranty 18 months
