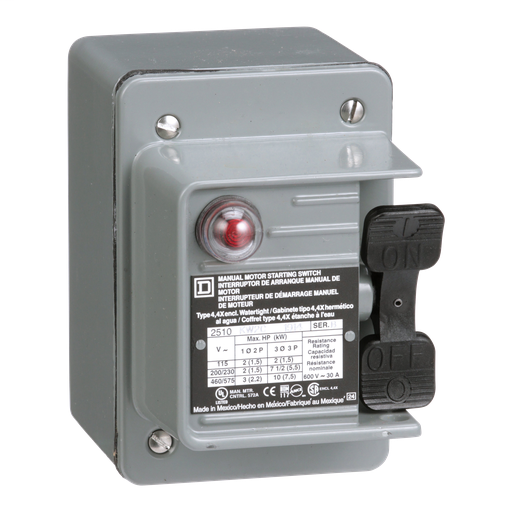

Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, red 440/600 VAC indicator, NEMA 4 enclosure
2510KW2C
Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, red 440/600 VAC indicator, NEMA 4 enclosure

2510K manual motor switches are designed for manual On Off control for small motors. This three pole switch is rated for 2 HP at 115VAC, 7.5 HP at 230VAC, 10 HP at 460VAC, and 10 HP at 600VAC three phase. It is also rated for 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC motors. Overload protection for the motor must be supplied separately. 2510K switches can be ordered in a variety of enclosure types. This device is in a surface mount NEMA 4 watertight enclosure. A 3/4 inch conduit opening is on the bottom of the enclosure. This switch comes as standard with a 440 to 600 volt red pilot light. Enclosure as a provision to allow padlocking of this device. 2510K manual switches are UL listed and CSA certified.

Brand: Square D

Add to Quote Catalogue
Specifications
Part Number 2510KW2C
Country of Origin MX
UPC 785901436584
UPC11 78590143658
EAN 0785901436584
Availability S
Lead Time 5
UNSPSC 39121521
HTs Code 8536504000
Prop 65 This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
Discount Schedule CP1
Return Indicator Yes
Depth 4.56 inch
Height 4.38 inch
Width 3 inch
Characteristics
Product Single Unit Manual Switch
Type K
Current Rating 30 A
Cable Entry 0.75 NPT (bottom)
Horsepower Rating 2 hp 115 V AC 1 hp 90 V DC 2 hp 115 V DC 1.5 hp 230 V DC 7.5 hp 230 V AC 10 hp 460 V AC 10 hp 575 V AC
Maximum Voltage Rating 600 V AC 230 V DC
Number Of Poles 3P
Control Unit Type Toggle
Number Of Phases 3 phase
Pilot Light Red indicator, 440...600 V
Starter Type Non reversing
Electrical Connection Screw clamp terminals
Wire Gauge AWG 14...AWG 10 copper
Height 4.38 in (111.25 mm)
Width 3 in (76.20 mm)
Depth 4.56 in (115.82 mm)
Certifications UL listed file E42243 CCN NLRV CSA LR25490 class 3211 05
Nema Enclosure Rating NEMA 4 die cast zinc alloy standard size
Category 21102 - 2510,2511,2512 K
Discount Schedule CP1
GTIN 00785901436584
Nbr. Of Units In Pkg. 1
Country Of Origin MX
REACh Free Of SVHC Yes
EU RoHs Directive Not compliant
Pvc Free Yes
Warranty 18 months
