2510KO2

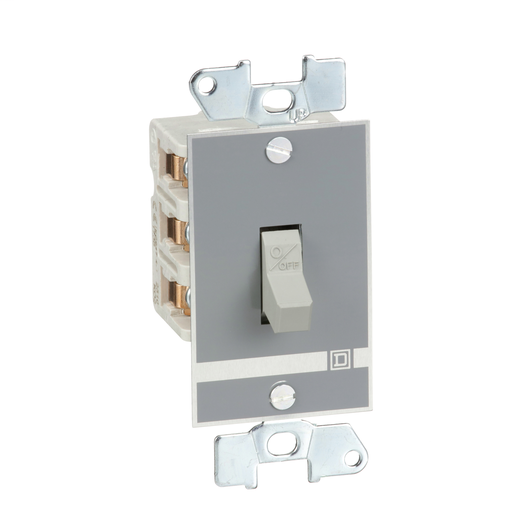

Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, no indicator, open style
Square D 2510K motor starting switches provide compact manual On Off control of single or three phase motors or resistance heating loads up to 600 VAC, where overload protection is not required or provided separately. Open type fits industry standard single-gang switch boxes for direct mounting in a wall or machine using any standard cover plate with a standard single cutout. Pilot light option is available. A variety of enclosures are available. Units are UL Recognized and CSA Certified for global applications.
Brand: Square D
Add to Quote CatalogueSpecifications
| Part Number | 2510KO2 |
|---|---|
| Country of Origin | MX |
| UPC | 785901554585 |
| UPC11 | 78590155458 |
| Availability | S |
| Lead Time | 5 |
| UNSPSC | 39121521 |
| HTs Code | 8536504000 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| Discount Schedule | CP1 |
| Return Indicator | Yes |
| Depth | 2.34 inch |
| Height | 4.13 inch |
| Width | 1.69 inch |
| Weight | 0.35 pound |
Characteristics
| Product | Single Unit Manual Switch |
|---|---|
| Type | K |
| Current Rating | 30 A |
| Horsepower Rating | 2 hp 115 V AC 1 hp 90 V DC 2 hp 115 V DC 1.5 hp 230 V DC 7.5 hp 230 V AC 10 hp 460 V AC 10 hp 575 V AC |
| Maximum Voltage Rating | 600 V AC 230 V DC |
| Number Of Poles | 3P |
| Control Unit Type | Toggle |
| Number Of Phases | 3 phase |
| Pilot Light | No indicator |
| Starter Type | Non reversing |
| Electrical Connection | Screw clamp terminals |
| Wire Gauge | AWG 14...AWG 10 copper |
| Height | 4.13 in (104.90 mm) |
| Width | 1.69 in (42.93 mm) |
| Depth | 2.34 in (59.44 mm) |
| Product Weight | 0.35 lb(US) (0.16 kg) |
| Certifications | UL recognized E42243 CCN NLRV2 CSA LR25490 class 3211 05 |
| Nema Enclosure Rating | Not rated (open device) |
| Category | 21102 - 2510,2511,2512 K |
| Discount Schedule | CP1 |
| GTIN | 00785901554585 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Not compliant |
| Pvc Free | Yes |
| Warranty | 18 months |
