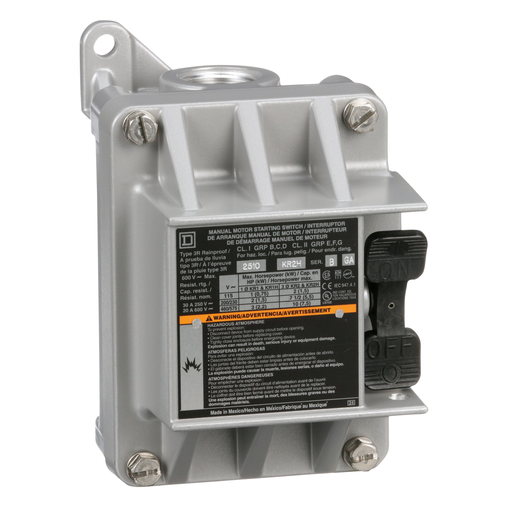

Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, no indicator, NEMA 7/9, two conduit opening
2510K manual motor switches are designed for manual On Off control for small motors. This three pole switch is rated for 2 HP at 115VAC, 7.5 HP at 230VAC, 10 HP at 460VAC, and 10 HP at 600VAC three phase. It is also rated for 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC motors. Overload protection for the motor must be supplied separately. 2510K switches can be ordered in a variety of enclosure types. This device is in a surface mount NEMA 7&9 hazardous location enclosure. A 3/4 inch conduit opening is on the top and bottom of the enclosure. Enclosure as a provision to allow padlocking of this device. 2510K manual switches are UL listed and CSA certified.
Brand: Square D
Add to Quote CatalogueSpecifications
| Part Number | 2510KR2H |
|---|---|
| Country of Origin | MX |
| UPC | 785901554646 |
| UPC11 | 78590155464 |
| EAN | 0785901554646 |
| Availability | S |
| Lead Time | 5 |
| UNSPSC | 39121521 |
| HTs Code | 8536504000 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| Discount Schedule | CP1 |
| Return Indicator | Yes |
| Depth | 4.35 inch |
| Height | 6.36 inch |
| Width | 3.95 inch |
Characteristics
| Product | Single Unit Manual Switch |
|---|---|
| Type | K |
| Current Rating | 20 A |
| Cable Entry | 0.75 NPT (top and bottom) |
| Horsepower Rating | 2 hp 115 V AC 1 hp 90 V DC 2 hp 115 V DC 1.5 hp 230 V DC 7.5 hp 230 V AC 10 hp 460 V AC 10 hp 575 V AC |
| Maximum Voltage Rating | 600 V AC 230 V DC |
| Number Of Poles | 3P |
| Control Unit Type | Toggle |
| Number Of Phases | 3 phase |
| Pilot Light | No indicator |
| Starter Type | Non reversing |
| Electrical Connection | Screw clamp terminals |
| Wire Gauge | AWG 14...AWG 10 copper |
| Height | 6.36 in (161.54 mm) |
| Width | 3.95 in (100.33 mm) |
| Depth | 4.35 in (110.49 mm) |
| Certifications | UL listed file E58760 CCN NPXZ CSA LR26817 class 3218 04 |
| Nema Enclosure Rating | NEMA 3R/7/9 cast aluminium standard size |
| Category | 21102 - 2510,2511,2512 K |
| Discount Schedule | CP1 |
| GTIN | 00785901554646 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Not compliant |
| Pvc Free | Yes |
| Warranty | 18 months |
