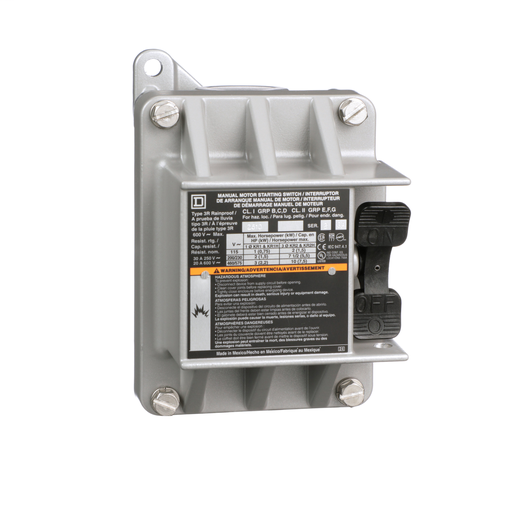

Switch, manual, 20A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, no indicator, NEMA 7&9, one conduit opening
2510K manual motor switches are Intended for industrial, commercial and residential applications. These switches are for applications where overload protection is not required or is provided separately. Manual motor switches provide manual On Off control of small motors. They are designed for single or three phase AC motors. These nonreversing manual switches are toggle operated. The maximum operational voltage is 600 VAC and 250 VDC. This two pole switch is rated for 2 HP at 115VAC, 2 HP at 230VAC, 3 HP at 460VAC, 3 HP at 600VAC single phase, 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC and 20A continuous. The screw clamp terminals will accept 14 to 10 AWG copper wire. This switch has no pilot light indicator. This device has a NEMA 7&9 enclosure. The enclosure has one cable entry on the bottom that has a 0.75 NPT in the bottom. Enclosure is 6.36 inches tall, 3.95 inches wide and 4.35 inches deep. This device is UL Listed and CSA certified.
Brand: Square D
Add to Quote CatalogueSpecifications
| Part Number | 2510KR1 |
|---|---|
| Country of Origin | MX |
| UPC | 785901554639 |
| UPC11 | 78590155463 |
| EAN | 0785901554639 |
| Availability | S |
| Lead Time | 5 |
| UNSPSC | 39121521 |
| HTs Code | 8536504000 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| Discount Schedule | CP1 |
| Return Indicator | Yes |
| Depth | 4.35 inch |
| Height | 6.36 inch |
| Width | 3.95 inch |
Characteristics
| Product | Single Unit Manual Switch |
|---|---|
| Type | K |
| Current Rating | 20 A |
| Cable Entry | 0.75 NPT (bottom) |
| Horsepower Rating | 2 hp 115 V AC 2 hp 230 V AC 3 hp 460 V AC 3 hp 575 V AC 1 hp 90 V DC 2 hp 115 V DC 1.5 hp 230 V DC |
| Maximum Voltage Rating | 600 V AC 230 V DC |
| Number Of Poles | 2P |
| Control Unit Type | Toggle |
| Number Of Phases | 1 phase |
| Pilot Light | No indicator |
| Starter Type | Non reversing |
| Electrical Connection | Screw clamp terminals |
| Wire Gauge | AWG 14...AWG 10 copper |
| Height | 6.36 in (161.54 mm) |
| Width | 3.95 in (100.33 mm) |
| Depth | 4.35 in (110.49 mm) |
| Certifications | UL listed file E58760 CCN NPXZ CSA LR26817 class 3218 04 |
| Nema Enclosure Rating | NEMA 3R/7/9 cast aluminium standard size |
| Category | 21102 - 2510,2511,2512 K |
| Discount Schedule | CP1 |
| GTIN | 00785901554639 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Not compliant |
| Pvc Free | Yes |
| Warranty | 18 months |
