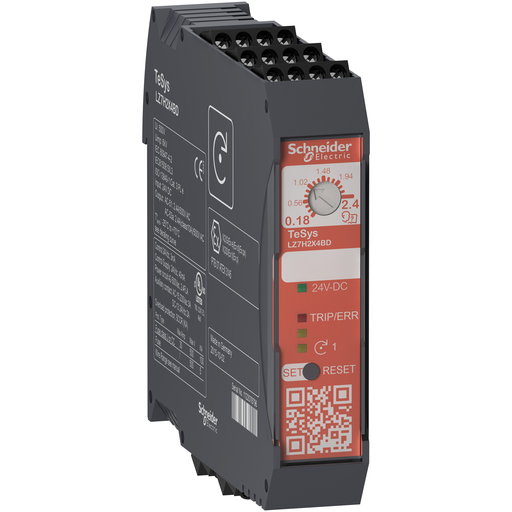

Starter TeSys H Safe-Torque-Off 0,75kW-400V control 110-230VAC
TeSys H ultra compact direct safety starter, 3 poles, 2.4A/500V AC-53, for control and protection of 3-phase motors up to 0.75kW@400V (1HP@480V). The hybrid technology used for power contacts procures ultra compactness (22.5mm width) as well as an extended electrical durability up to 30 million cycles AC-53. It provides control for one direction of rotation, an adjustable motor current 0.18-2.4A, class 10A thermal overload protection with auto/manual/remote reset, phase loss and phase unbalanced protection, stall and jam motor protection. To be supplied with 110-230V AC, it provides logic inputs for ON/OFF motor running and remote reset after thermal tripping, 1C/O contact relay for fault indication, LED status on front face for indication of tripping and motor running. With an integrated Safe Torq Off (STO) function with SIL3 level according IEC61508-1 and PLe level according ISO13849-1, it can be integrated to safety chain applications. DIN rail mounting, screw terminals for control and power, it can be used without derating for ambient temperatures from -25 to 70°C. Multi standards certified (IEC, UL, CCC), Green Premium compliant (RoHS/REACh).
Add to Quote CatalogueSpecifications
| Part Number | LZ7H2X4FU |
|---|---|
| Country of Origin | DE |
| UPC | 785901716587 |
| UPC11 | 78590171658 |
| EAN | 3606485421032 |
| Availability | N |
| Lead Time | 34 |
| UNSPSC | 39121521 |
| HTs Code | 8536504000 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | I12 |
| Return Indicator | No |
| Depth | 4.51 inch |
| Height | 3.90 inch |
| Width | 0.89 inch |
| Weight | 7.48 ounce |
Characteristics
| Range | TeSys |
|---|---|
| Product Name | TeSys H |
| Device Short Name | LZ7H |
| Product Or Component Type | Ultra-compact starter |
| Motor Starter Type | Direct on line |
| Poles Description | 3P |
| Ue Rated Operational Voltage | 500 V AC |
| Ie Rated Operational Current | 2.4 A 500 V AC-51 2.4 A 500 V AC-53A 2.4 A 500 V AC-51 mounting side by side 2.4 A 500 V AC-53A mounting side by side |
| Thermal Protection Adj Range | 0.18…2.4 A |
| Motor Power kW | 0.37 kW 220 V AC 0.65 0.37 kW 230 V AC 0.65 0.75 kW 380 V AC 0.65 0.75 kW 400 V AC 0.65 0.75 kW 415 V AC 0.65 0.75 kW 440 V AC 0.65 1.1 kW 500 V AC 0.65 |
| Motor Power Hp | 0.5 hp 200 V AC 0.5 hp 230 V AC 1 hp 460 V AC |
| [Uc] Control Circuit Voltage | 110...230 V AC 50/60 Hz |
| Safety Level | SIL 3 IEC 61508-1 stop function PL = e ISO 13849-1 stop function SIL 2 IEC 61508-1 motor protection |
| Safety Reliability Data | SFF = 99 % stop function SFF = 99 % motor protection MTTFd = 289 years stop function MTTFd = 273 years motor protection PFHd = 6.27E-9 1/h stop function |
| Thermal Overload Class | Class 10A IEC 60947-4-2 |
| Auxiliary Contact Composition | 1 C/O fault signalling |
| Ctrl Circuit Voltage Limits | 85...253 V AC |
| Current Consumption | <= 4 mA 110...230 V AC |
| Reset | Manual Electrical reset |
| Electrical Durability | 30 Mcycles |
| Operating Rate | 120 cyc/mn AC-51 50 % 6 cyc/mn AC-53A 50 % |
| Mounting Mode | By clips |
| Mounting Support | DIN rail |
| Connections - Terminals | screw clamp terminals 1 0.00…0.00 in² (0.2…2.5 mm²) rigid screw clamp terminals 1 0.00…0.00 in² (0.25…2.5 mm²) flexible - with cable end screw clamp terminals 1 0.00…0.00 in² (0.2…2.5 mm²) flexible - without cable end |
| Tightening Torque | 4.43…5.31 lbf.in (0.5…0.6 N.m) flat Ø 2.5 mm 0.12 in (3 mm) |
| Certifications | CE CULus ATEX as associated device for motor protection in zones 1 and 21 |
| Standards | IEC 60947-4-2 UL 60947-4-1 |
| Ui Rated Insulation Voltage | 500 V AC 50/60 Hz |
| Uimp Rated Imp Wstd Voltage | 4 kV |
| Pollution Degree | 2 |
| Width | 0.89 in (22.5 mm) |
| Height | 3.90 in (99 mm) |
| Depth | 4.51 in (114.5 mm) |
| Product Weight | 7.48 oz (212 g) |
| IP Degree Of Protection | IP20 |
| Protective Treatment | TC |
| Ambient Air Temp For Op | -13…149 °F (-25…65 °C) without derating 149…158 °F (65…70 °C) with derating |
| Ambient Air Temp For Storage | -40…176 °F (-40…80 °C) |
| Category | 22349 - TESYS H ELECTRONIC STARTER 0-6.5A |
| Discount Schedule | I12 |
| GTIN | 00785901716587 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | DE |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Compliant |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
