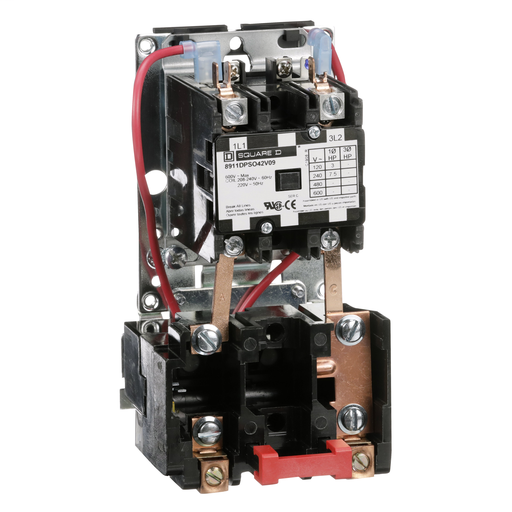

Starter, Definite Purpose, nonreversing, 40A, 2 pole, 1 phase, 208 to 240 VAC coil, melting alloy overload, open style
8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This two pole definite purpose starter has a full load rating of 40 amperes. This starter has ratings of 3 HP at 115 VAC and 7.5 HP at 230 VAC single phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz 220 VAC 50 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. This starter doesn’t have an enclosure. Enclosures are available. Starter is 7.0 inches tall, 3.5 inches wide and 4.0 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.
Brand: Square D
Add to Quote CatalogueSpecifications
| Part Number | 8911DPSO42V09 |
|---|---|
| Country of Origin | CN |
| UPC | 785901167853 |
| UPC11 | 78590116785 |
| EAN | 0785901167853 |
| Availability | S |
| Lead Time | 28 |
| UNSPSC | 39121521 |
| ECCN | EAR99 |
| HTs Code | 8536504000 |
| Prop 65 | This product can expose you to chemicals which are known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CP1 |
| Return Indicator | Yes |
Characteristics
| Product | Definite Purpose Starter |
|---|---|
| Ampere Rating | 40 A |
| Horsepower Rating | 3 hp 115 V AC, 1 phase 7.5 hp 230 V AC, 1 phase |
| Maximum Voltage Rating | 600 V AC |
| Control Circuit Voltage | 220 V AC 50 Hz 208...240 V AC 60 Hz |
| Phase | 1 phase |
| Enclosure Rating | Not rated (open device) |
| Locked Rotor Amperes | 240 A 230 V AC 200 A 460 V AC 160 A 575 V AC |
| Number Of Poles | 2P |
| Range | DPS |
| Overload Type | Melting alloy |
| Number Of Thermal Units | 1 |
| Category | 21381 - 8911 DP |
| Discount Schedule | CP1 |
| GTIN | 00785901167853 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | CN |
| EU RoHs Directive | Compliant |
| Mercury Free | Yes |
| Warranty | 18 months |
