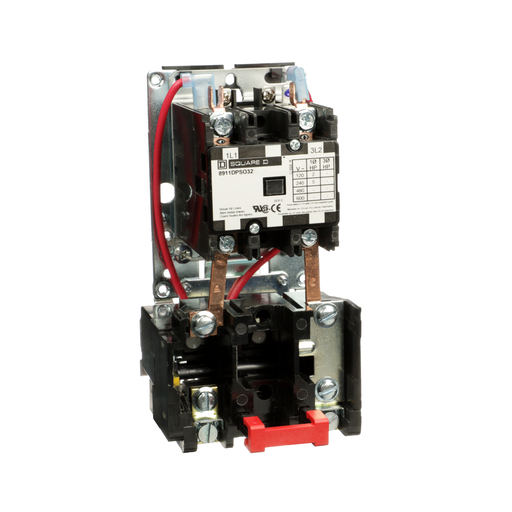

8911DPSO32V02
STARTER 600VAC 30AMP DPS +OPTIONS
Specifications
| Part Number | 8911DPSO32V02 |
|---|---|
| Country of Origin | CN |
| UPC | 785901342809 |
| UPC11 | 78590134280 |
| EAN | 0785901342809 |
| Availability | N |
| Lead Time | 27 |
| UNSPSC | 39121521 |
| ECCN | EAR99 |
| HTs Code | 8536504000 |
| Prop 65 | This product can expose you to chemicals which are known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CP1 |
| Return Indicator | No |
Characteristics
| Product | Definite Purpose Starter |
|---|---|
| Ampere Rating | 30 A |
| Horsepower Rating | 2 hp 115 V AC, 1 phase 5 hp 230 V AC, 1 phase |
| Maximum Voltage Rating | 600 V AC |
| Control Circuit Voltage | 110 V AC 50 Hz 120 V AC 60 Hz |
| Phase | 1 phase |
| Enclosure Rating | Not rated (open device) |
| Locked Rotor Amperes | 180 A 230 V AC 150 A 460 V AC 120 A 575 V AC |
| Number Of Poles | 2P |
| Range | DPS |
| Overload Type | Melting alloy |
| Number Of Thermal Units | 1 |
| Category | 21381 - 8911 DP |
| Discount Schedule | CP1 |
| GTIN | 00785901342809 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | CN |
| EU RoHs Directive | Compliant |
| Mercury Free | Yes |
| Warranty | 18 months |
Documents
- Certificate (CSA_Certificate_025490_3211-04)
- Certificate (UL_Certificate_E3190_NLDX8)
- Certificate (UL_Certificate_E3190_NLDX2)
- Product Datasheet (pdf)
- Data Bulletin (8536DB0901)
- Catalog (8910CT9301)
- Information Label (30072-005-130-1)
- Information Label (30072-005-130)
- Information Label (30072-454-02)
