| Range |
Spacial |
| Product Name |

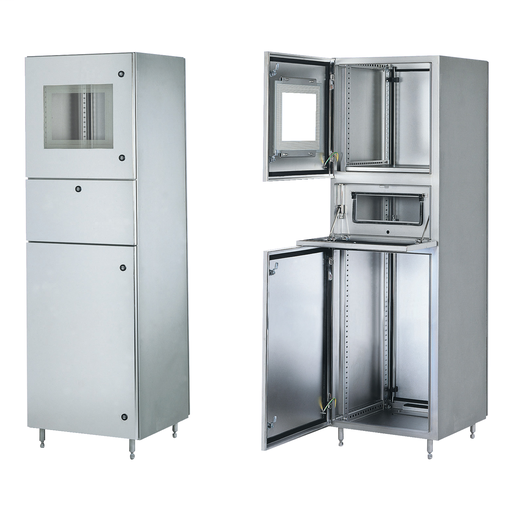

Spacial SMX |
| Enclosure Type |
Computer protection
PC application |
| Category |
Compact enclosure |
| Nominal Height |
62.99 in (1600 mm) |
| Nominal Width |
23.62 in (600 mm) |
| Nominal Depth |
23.62 in (600 mm) |
| Product Installation |
Floor-standing |
| Device Composition |
1 body
1 cable gland plate
1 partial door for keyboard
1 partial door for PC screen
1 partial door for printer support/CPU
1 rear door |
| Body Type |
Single piece body folded and welded |
| Door Type |
Glazed partial
Plain partial
Solid |
| Number Of Doors |
Front 2
Front 1
Rear 1 |
| Door Opening Side |
Reversible 120 °) |
| Lock Type |
3 mm double-bar lock |
| Mounting Plate Description |
Without mounting plate |
| Type Of Gland Plate |
Plain |
| Accessibility For Operation |
Rear
Front |
| Removable Parts |
Cable gland plate by clips
Door by hinges rear
Partial doors by hinges front
Transparent shutter by screws |
| Material |
Body and door stainless steel 304L
Hinge stainless steel
Door Securit glass
Lock zamak |
| Surface Finish |
Body and door micro beaded
Securit glass silkscreened
Lock chromium plated |
| Product Weight |
220.46 lb(US) (100 kg) |
| Standards |
IEC 62208 |
| IP Degree Of Protection |
IP55 IEC 60529 even with the keyboard drawer open) |
| IK Degree Of Protection |
IK10 IEC 62262 plain door)
IK08 IEC 62262 glazed door) |
| Environmental Characteristic |
Specific hygiene
Corrosive |
| Category |
80036 - ENCLOSURE SYSTEMS ACCESSORIES |
| Discount Schedule |
ES1 |
| GTIN |
03606480155727 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
FR |
| Green Premium Status |
Green Premium product |
| REACh Free Of SVHC |
Yes |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free |
Yes |
| Warranty |
18 months |
