LV426940

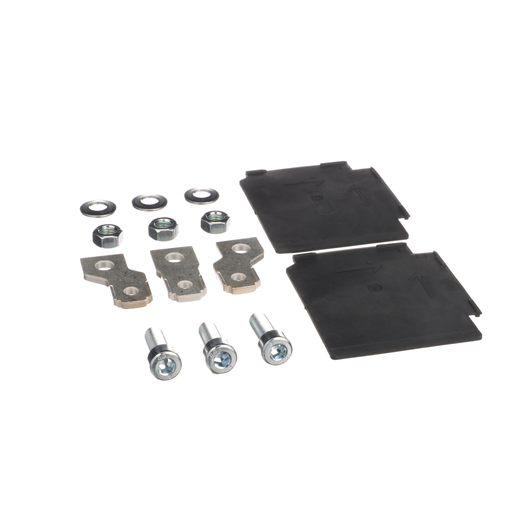

Spreader set – 35 mm pitch – 3 poles
It is a set of 3 spreaders used to increase the pitch between the poles from 21 mm to 35 mm. It is used on compact NSXm and PowerPact B devices. Bares and cable lugs are attached to the end of the spreaders. These accessories are supplied with M8 screws for power connection and 2 interphase barriers.
Add to Quote CatalogueSpecifications
| Part Number | LV426940 |
|---|---|
| Country of Origin | CN |
| UPC | 606485444291 |
| UPC11 | 60648544429 |
| EAN | 3606485444291 |
| Availability | N |
| Lead Time | 48 |
| UNSPSC | 39121601 |
| HTs Code | 8536308000 |
| Prop 65 | This product can expose you to chemicals including: DINP and DIDP which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | DE2 |
| Return Indicator | Yes |
Characteristics
| Range Compatibility | PowerPact B Compact NSXm TeSys GV4 TeSys BV4 |
|---|---|
| Product Or Component Type | Spreader |
| Accessory / Separate Part Type | Connection accessories |
| Poles Description | 3P |
| Quantity Per Set | Set of 1 |
| Provided Equipment | Interphase barriers |
| Mounting Mode | Fixed |
| Location Of Connection | Downstream Upstream |
| In Rated Current | 0…160 A |
| Connection Pitch | 1.38 in (35 mm) 1.06 in (27 mm) |
| Conductor Material | Copper |
| Connections - Terminals | Crimp lug upstream) Crimp lug downstream) |
| Tightening Torque | 79.66 lbf.in (9 N.m) upstream 79.66 lbf.in (9 N.m) downstream |
| Category | 01136 - PP-B FRAME ACCESSORIES |
| Discount Schedule | DE2 |
| GTIN | 03606485444291 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | CN |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Compliant |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
