2510KO2Y7

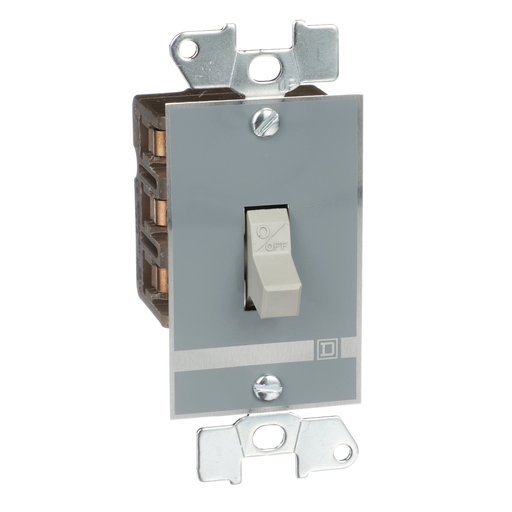

Special Manual Switch – Open – 3P – Toggle Operated – No Indicator – 600VAC
Specifications
| Part Number | 2510KO2Y7 |
|---|---|
| Country of Origin | MX |
| UPC | 785901309567 |
| UPC11 | 78590130956 |
| EAN | 0785901309567 |
| Availability | N |
| Lead Time | 6 |
| UNSPSC | 39121521 |
| HTs Code | 8536504000 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CP1 |
| Return Indicator | No |
| Depth | 2.34 inch |
| Height | 4.13 inch |
| Width | 1.69 inch |
Characteristics
| Product | Single Unit Manual Switch |
|---|---|
| Type | K |
| Current Rating | 30 A |
| Horsepower Rating | 2 hp 115 V AC 1 hp 90 V DC 2 hp 115 V DC 1.5 hp 230 V DC 7.5 hp 230 V AC 10 hp 460 V AC 10 hp 575 V AC |
| Maximum Voltage Rating | 600 V AC 230 V DC |
| Number Of Poles | 3P |
| Control Unit Type | Toggle |
| Number Of Phases | 3 phase |
| Pilot Light | No indicator |
| Starter Type | Non reversing |
| Electrical Connection | Screw clamp terminals |
| Wire Gauge | AWG 14...AWG 10 copper |
| Height | 4.13 in (104.90 mm) |
| Width | 1.69 in (42.93 mm) |
| Depth | 2.34 in (59.44 mm) |
| Certifications | UL recognized E42243 CCN NLRV2 CSA LR25490 class 3211 05 |
| Nema Enclosure Rating | Not rated (open device) |
| Category | 21102 - 2510,2511,2512 K |
| Discount Schedule | CP1 |
| GTIN | 00785901309567 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Compliant |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Warranty | 18 months |
