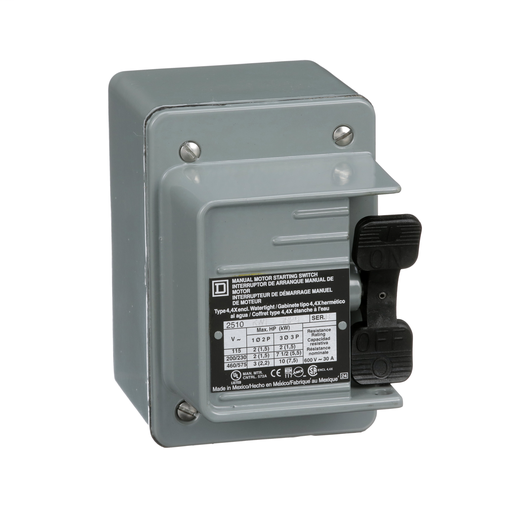

2510KW8
Special Manual Switch – NEMA 4 – 3P – Toggle Operated – No Indicator – 600VAC
Specifications
| Part Number | 2510KW8 |
|---|---|
| Country of Origin | MX |
| UPC | 785901014867 |
| UPC11 | 78590101486 |
| EAN | 0785901014867 |
| Availability | N |
| Lead Time | 5 |
| UNSPSC | 39121521 |
| HTs Code | 8536504000 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| Discount Schedule | CP1 |
| Return Indicator | No |
| Depth | 4.35 inch |
| Height | 6.36 inch |
| Width | 3.95 inch |
Characteristics
| Product | Single Unit Manual Switch |
|---|---|
| Type | K |
| Current Rating | 30 A |
| Cable Entry | 0.75 NPT (top and bottom) |
| Horsepower Rating | 2 hp 115 V AC 1 hp 90 V DC 2 hp 115 V DC 1.5 hp 230 V DC 7.5 hp 230 V AC 10 hp 460 V AC 10 hp 575 V AC |
| Maximum Voltage Rating | 600 V AC 230 V DC |
| Number Of Poles | 3P |
| Control Unit Type | Toggle |
| Number Of Phases | 3 phase |
| Pilot Light | No indicator |
| Starter Type | Non reversing |
| Electrical Connection | Screw clamp terminals |
| Wire Gauge | AWG 14...AWG 10 copper |
| Height | 6.36 in (161.54 mm) |
| Width | 3.95 in (100.33 mm) |
| Depth | 4.35 in (110.49 mm) |
| Certifications | UL listed file E42243 CCN NLRV CSA LR25490 class 3211 05 |
| Nema Enclosure Rating | NEMA 4 die cast zinc alloy standard size |
| Category | 21102 - 2510,2511,2512 K |
| Discount Schedule | CP1 |
| GTIN | 00785901014867 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Not compliant |
| Pvc Free | Yes |
| Warranty | 18 months |
