NSYSMHR6
Spacial SM horizontal adaptation profiles – 600 mm

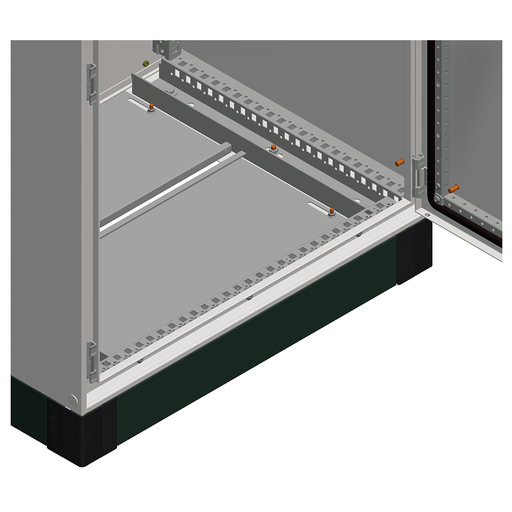

Spacial SM horizontal adaptation profiles. 600 mm. Allows to have fixation points in the external frame of the monobloc enclosure. Mounting on top and bottom front of enclosure. Horizontal installation. Steel made, zinc coated surface finish. 2 profiles and fixing screws included.
Add to Quote CatalogueSpecifications
| Part Number | NSYSMHR6 |
|---|---|
| Country of Origin | EG |
| UPC | 606480146671 |
| UPC11 | 60648014667 |
| EAN | 3606480146671 |
| Availability | N |
| Lead Time | 68 |
| UNSPSC | 39121327 |
| ECCN | EAR99 |
| HTs Code | 8538908180 |
| Prop 65 | This product can expose you to chemicals which are known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | ES1 |
| Return Indicator | No |
| Depth | 1.65 inch |
| Height | 0.96 inch |
| Width | 23.62 inch |
Characteristics
| Range | Spacial |
|---|---|
| Accessory / Separate Part Cate | Mounting accessory |
| Product Or Component Type | Adaptation profile |
| Application | Multi-purpose |
| Range Compatibility | Spacial SM |
| Mounting Location | Top and bottom front of enclosure |
| Installation Direction | Horizontal |
| Device Composition | fixing screws 2 profile |
| Quantity Per Set | Set of 1 |
| Material | steel |
| Surface Finish | Zinc coated |
| Fixing Mode | By screws - on front fixing point |
| Height | 0.96 in (24.5 mm) |
| Width | Nominal 23.62 in (600 mm) Real 14.96 in (380 mm) |
| Depth | 1.65 in (42 mm) |
| Thickness | 0.06 in (1.5 mm) |
| Category | 80036 - ENCLOSURE SYSTEMS ACCESSORIES |
| Discount Schedule | ES1 |
| GTIN | 03606480146671 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | EG |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| Warranty | 18 months |
