| Range |
Spacial |
| Product Name |

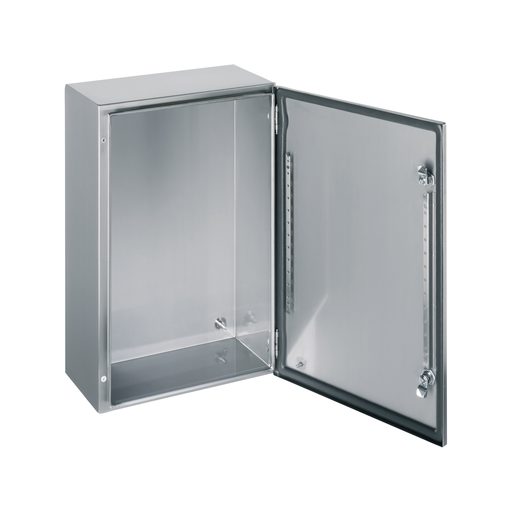

Spacial S3X |
| Enclosure Type |
Multi-purpose |
| Category |
Compact enclosure |
| Nominal Height |
31.50 in (800 mm) |
| Nominal Width |
31.50 in (800 mm) |
| Nominal Depth |
11.81 in (300 mm) |
| Product Installation |
Wall-mounting |
| Device Composition |
1 body
1 door
2 lock door
2 perforated vertical profile drilled door |
| Body Type |
Single piece body, cross-shaped structure
Gutter shaped front rail |
| Door Type |
Solid |
| Number Of Doors |
Front face 1 |
| Door Opening Side |
Reversible 120 °) |
| Lock Type |
2 points lock, 3 mm double-bar |
| Mounting Plate Description |
Without mounting plate |
| Type Of Gland Plate |
Without gland plate |
| Accessibility For Operation |
Front |
| Removable Parts |
Door by hinges |
| Material |
Body and door stainless steel 304L
Lock zamak
Hinge stainless steel |
| Surface Finish |
Body and door Scotch-Brite® brushed
Lock chromium plated |
| Thickness |
0.06 in (1.5 mm) |
| Product Weight |
70.55 lb(US) (32 kg) |
| Standards |
IEC 62208 |
| Product Certifications |
UL 508 type A
CAN/CSA 22 |
| IP Degree Of Protection |
IP66 IEC 60529 |
| IK Degree Of Protection |
IK10 IEC 62262 |
| Environmental Characteristic |
Corrosive
Specific hygiene |
| Category |
80034 - ENCLOSURE SYSTEMS WALL MOUNT METAL |
| Discount Schedule |
ES1 |
| GTIN |
00785901690436 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
BG |
| Green Premium Status |
Green Premium product |
| REACh Free Of SVHC |
Yes |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free |
Yes |
| Warranty |
18 months |
