| Range |
Spacial |
| Accessory / Separate Part Cate |
Enclosure accessory |
| Product Or Component Type |

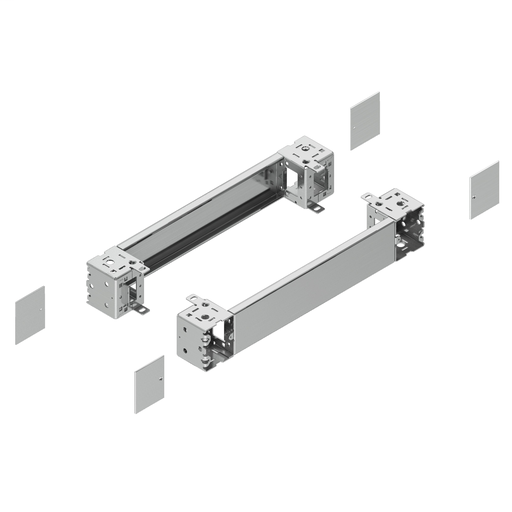

Plinth front |
| Application |
Multi-purpose |
| Device Composition |
fixing elements
4 corner cover
1 front panel
1 rear panel
4 corner |
| Range Compatibility |
Spacial SF
Spacial SM
Spacial SD
Spacial S3D
Spacial CRN
Spacial SFHD
Spacial S3HD
Spacial S3X
Spacial SMX
Spacial SFX
Spacial SDX
Spacial CRNG |
| Fixing Mode |
By fixing element - on structure |
| Surface Finish |
Untreated |
| Height |
3.94 in (100 mm) |
| Width |
Nominal 31.50 in (800 mm) |
| Product Weight |
11.13 lb(US) (5.05 kg) |
| IP Degree Of Protection |
IP30 complete plinth) |
| IK Degree Of Protection |
IK10 |
| Category |
80036 - ENCLOSURE SYSTEMS ACCESSORIES |
| Discount Schedule |
ES1 |
| GTIN |
03606480626128 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
ES |
| REACh Free Of SVHC |
Yes |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free |
Yes |
