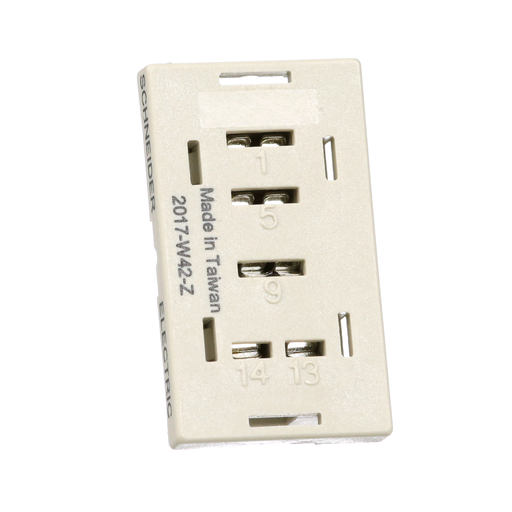

70-781T-1
Socket, Legacy general purpose relay accessory, SPDT, 10A, 300 V, 5 pins, pins for printed circuit board, 781R series
Specifications
| Part Number | 70-781T-1 |
|---|---|
| UPC | 606480278082 |
| UPC11 | 60648027808 |
| EAN | 3606480278082 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Depth | 1.22 inch |
| Width | 0.71 inch |
| Weight | 0.63 ounce |
Characteristics
| Product Range | Legacy |
|---|---|
| Product Type | Socket |
| Product Compatibility | relay 781XAXR |
| Number Of Terminals | 5 |
| Switch Function | SPDT |
| Contact Composition | 1 NC + 1 NO |
| In Rated Current | 10 A 300 V 15 A 150 V |
| Rated Voltage | 300 V |
| Contact Terminal Arrangement | Mixed |
| Connections - Terminals | pins for printed circuit board |
| Fixing Mode | By screws printed circuit boards |
| Product Weight | 0.63 oz (18 g) |
| Width | 0.71 in (18 mm) |
| Depth | 1.22 in (31 mm) |
| Ambient Air Temp For Storage | -40…221 °F (-40…105 °C) |
| Ambient Temperature Range - Operational | -40…131 °F (-40…55 °C) |
| Flame Retardance | UL94-V0 |
| Product Certifications | UL CE RoHS |
| GTIN | 03606480278082 |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
