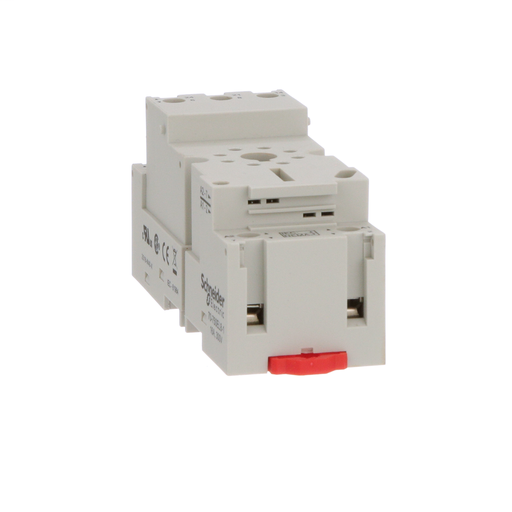

70-750EL8-1
Socket, Legacy general purpose relay accessory, DPDT, 16A, 300 V, 8 pins, lift terminals, lock plastic clip, 750/750H s
Specifications
| Part Number | 70-750EL8-1 |
|---|---|
| UPC | 606480278044 |
| UPC11 | 60648027804 |
| EAN | 3606480278044 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Depth | 2.24 inch |
| Width | 1.42 inch |
| Weight | 2.79 ounce |
Characteristics
| Product Range | Legacy |
|---|---|
| Product Type | Socket |
| Product Compatibility | relay 750XBXR suppressor module 70-ASMM diode 70-ASMD signalling device 70-ASMLG suppressor module 70-ASMR jumper wire 16-750CBJ-1 |
| Number Of Terminals | 8 |
| Switch Function | DPDT |
| Contact Composition | 2 NO + 2 NC |
| In Rated Current | 16 A |
| Rated Voltage | 300 V |
| Contact Terminal Arrangement | Separate |
| Connections - Terminals | lift terminalsflexible lift terminalssolid |
| Tightening Torque | 0.8 N.m, AWG 14...AWG 12, copper |
| Fixing Mode | By screw M3.5, M3.5 panel |
| Shape Of Screw Head | Combination roundhead |
| Product Weight | 2.79 oz (79 g) |
| Width | 1.42 in (36 mm) |
| Depth | 2.24 in (57 mm) |
| Ambient Air Temp For Storage | -40…221 °F (-40…105 °C) |
| Ambient Temperature Range - Operational | -40…131 °F (-40…55 °C) |
| IP Degree Of Protection | IP20 |
| Flame Retardance | UL94-V0 |
| Product Certifications | UL CSA CE RoHS |
| GTIN | 03606480278044 |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
