70-124-1

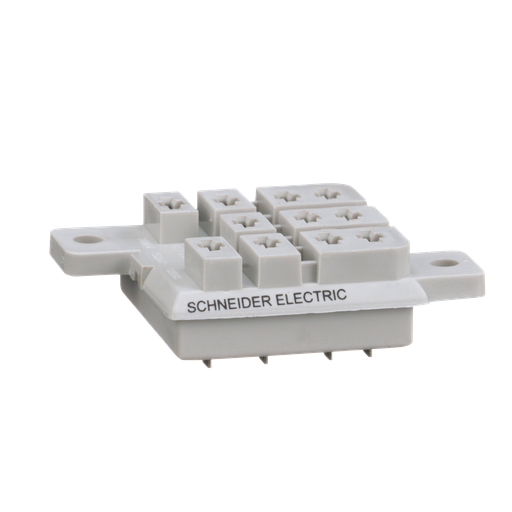

Socket, Legacy general purpose relay accessory, 3PDT, 15A, 300 V, 11 pins, solder terminal, 788R series
Specifications
| Part Number | 70-124-1 |
|---|---|
| UPC | 606480277757 |
| UPC11 | 60648027775 |
| EAN | 3606480277757 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Depth | 2.03 inch |
| Width | 1.50 inch |
| Weight | 0.43 ounce |
Characteristics
| Product Range | Legacy |
|---|---|
| Product Type | Socket |
| Product Compatibility | relay 788XBXR/XCXR |
| Number Of Terminals | 11 |
| Switch Function | 3PDT |
| Contact Composition | 3 NO + 3 NC |
| In Rated Current | 15 A |
| Rated Voltage | 300 V |
| Contact Terminal Arrangement | Mixed |
| Connections - Terminals | solder terminal |
| Fixing Mode | By screw chassis By screw panel |
| Product Weight | 0.43 oz (12.1 g) |
| Width | 1.50 in (38.1 mm) |
| Depth | 2.03 in (51.45 mm) |
| Ambient Air Temp For Storage | -40…221 °F (-40…105 °C) |
| Ambient Temperature Range - Operational | -40…131 °F (-40…55 °C) |
| IP Degree Of Protection | IP20 |
| Flame Retardance | UL94-V0 |
| Product Certifications | UL CSA CE RoHS |
| GTIN | 03606480277757 |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
