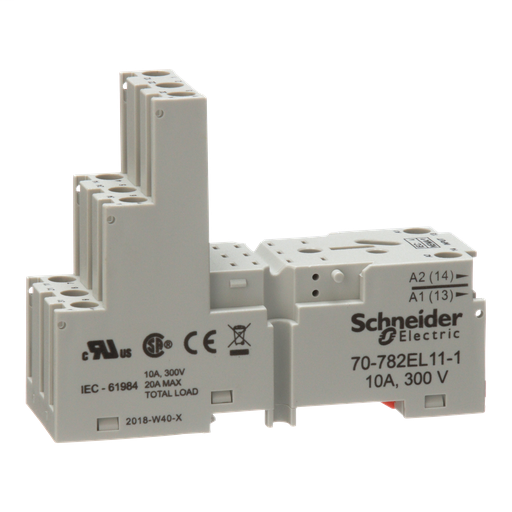

70-782EL11-1
Socket, Legacy general purpose relay accessory, 3PDT, 10A, 300 V, 11 pins, lift terminals, locking plastic clip, 782 s
Specifications
| Part Number | 70-782EL11-1 |
|---|---|
| UPC | 606480278136 |
| UPC11 | 60648027813 |
| EAN | 3606480278136 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Depth | 3.11 inch |
| Weight | 1.98 ounce |
Characteristics
| Product Range | Legacy |
|---|---|
| Product Type | Socket |
| Product Compatibility | relay 782XDXH diode 70-BSMD signalling device 70-BSMLG suppressor module 70-BSMM jumper wire 16-782CBJ-1 |
| Number Of Terminals | 11 |
| In Rated Current | 10 A |
| Rated Voltage | 300 V |
| Connections - Terminals | lift terminalsflexible lift terminalssolid |
| Tightening Torque | Chassis 0.8 N.m, AWG 16...AWG 14, copper |
| Fixing Mode | By screw panel Clip-on 35 mm symmetrical DIN rail |
| Product Weight | 1.98 oz (56 g) |
| Depth | 3.11 in (79 mm) |
| Flame Retardance | UL94-V0 |
| GTIN | 03606480278136 |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
