| Range |
Spacial |
| Product Name |

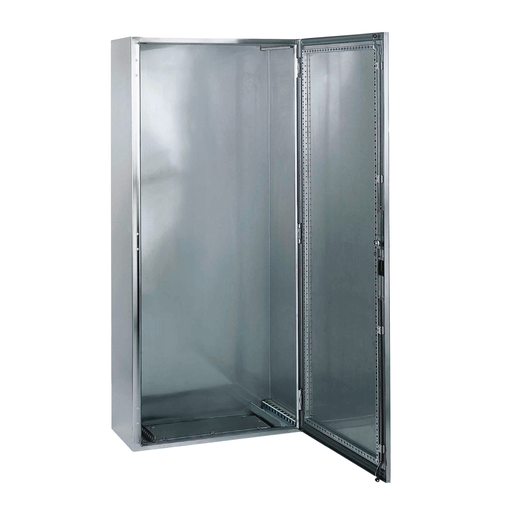

Spacial SMX |
| Enclosure Type |
Multi-purpose |
| Category |
Compact enclosure |
| Nominal Height |
78.74 in (2000 mm) |
| Nominal Width |
47.24 in (1200 mm) |
| Nominal Depth |
19.69 in (500 mm) |
| Product Installation |
Floor-standing |
| Device Composition |
1 body
2 door
1 cable gland plate
1 locking system with handle door
4 mounting plate bracket |
| Body Type |
Single piece body folded and welded |
| Door Type |
Solid |
| Number Of Doors |
Front face 2 |
| Door Opening Side |
Reversible 120 °) |
| Lock Type |
3 points lock, handle with 5 mm double-bar insert |
| Mounting Plate Description |
Without mounting plate |
| Type Of Gland Plate |
Plain |
| Accessibility For Operation |
Front |
| Removable Parts |
Door by hinges
Mounting plate bracket by screws
Cable gland plate by clips |
| Material |
Handle zamak
Hinge stainless steel
Body and door stainless steel 316L |
| Surface Finish |
Enclosure Scotch-Brite® brushed
Handle painted |
| Thickness |
0.06 in (1.5 mm) |
| Product Weight |
396.83 lb(US) (180 kg) |
| Standards |
IEC 62208 |
| Product Certifications |
UL 508
CAN/CSA 22 |
| IP Degree Of Protection |
IP55 IEC 60529 |
| IK Degree Of Protection |
IK10 IEC 62262 |
| Environmental Characteristic |
Corrosive
Specific hygiene |
| Category |
80035 - ENCLOSURE SYSTEMS FLOOR MOUNT |
| Discount Schedule |
ES1 |
| GTIN |
03606480155871 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
BG |
| Green Premium Status |
Green Premium product |
| REACh Free Of SVHC |
Yes |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free |
Yes |
| Warranty |
18 months |
