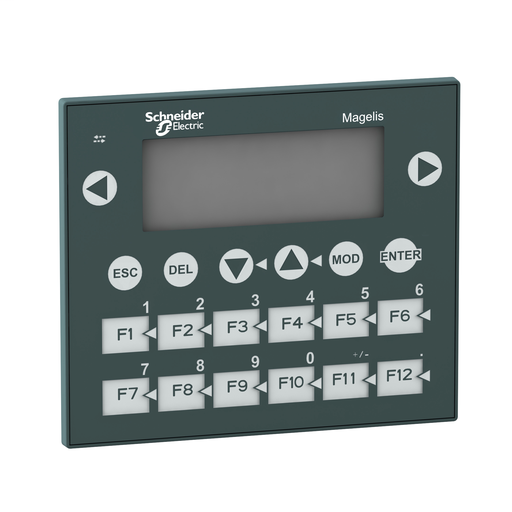

Small panel with keypad – matrix screen – green – 122 x 32 pixels – 5 V DC
This product is part of the Magelis XBT R range, an offer of HMI small panels. It comes a keypad and matrix backlit green LCD display with a resolution of 122 x 32 pixels. The display supports 4 lines of 20 characters maximum and 1 line of 5 characters minimum. The HMI small panel provides operators enhanced text and image display, utilising graphic objects for display flexibility. It supports Vijeo Designer Lite configuration software and Windows operating system with 512kB flash memory and Latin, Chinese (simplified), Greek, Cyrillic, Katakana character fonts. It is equipped with female RJ45, asynchronous transmission mode (RS232C/RS485) point-to-point topology serial link integrated connections. It is an IP20/IP65 and NEMA 4X rated product. This keypad is made of polyester and front material is PPT. Its dimensions are 137mm (width) x 78mm (depth) x 118mm (height) and weighs 0.55kg. This product is certified by CE, ATEX, UL and CSA. It meets UL 508, IEC 60068-2-27, IEC 60068-2-6, IEC 61131-2 and CSA C22.2 No 14 standards. This product is compatible with Modicon Premium, Modicon M340, Twido, Modicon TSX Micro and Modicon Quantum. The Magelis XBT N, R, RT range brings you convenience and ease of use, with a compact product, touch screen features and semi-graphic display suitable for small machines. Display text messages, utilize semi-graphic screen, perform diagnostics, control and adjust your control system devices and deliver big things for your business.
Add to Quote CatalogueSpecifications
| Part Number | XBTR400 |
|---|---|
| Country of Origin | CN |
| UPC | 785901602620 |
| UPC11 | 78590160262 |
| EAN | 3389119000031 |
| Availability | S |
| Lead Time | 43 |
| UNSPSC | 43211715 |
| ECCN | EAR99 |
| HTs Code | 8471601050 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | MC2 |
| Return Indicator | No |
| Depth | 3.07 inch |
| Height | 4.65 inch |
| Width | 5.39 inch |
| Weight | 1.21 pound |
Characteristics
| Range Of Product | Magelis XBTR |
|---|---|
| Display Resolution | 122 x 32 pixels |
| Software Type | Configuration software |
| Software Designation | Vijeo Designer Lite |
| Operating System | Windows |
| Display Type | Matrix backlit LCD |
| Character Font | Greek Cyrillic Chinese (simplified Chinese) Katakana Latin |
| Number Of Key | 20 |
| Number Of Fixed Keys | 8 |
| Number Of Customisable Keys | 12 |
| Number Of Pages | 256 alarm pages 200 application pages |
| Memory Type | Flash |
| Memory Capacity | 512 kB |
| Integrated Connection Type | Serial link female RJ45, asynchronous RS232C/RS485)point-to-point |
| Realtime Clock | Access to the PLC real-time clock |
| Range Compatibility | Twido Modicon Premium Modicon M340 Modicon TSX Micro |
| Product Mounting | Flush mounting |
| Fixing Mode | By 4 spring clips |
| Display Material | Polyester |
| Front Material | PPT |
| Keypad Material | Polyester |
| Marking | CE |
| Height | 4.65 in (118 mm) |
| Width | 5.39 in (137 mm) |
| Depth | 3.07 in (78 mm) |
| Cut-Out Dimensions | 119.6 (+/- 0.5) x 105.2 (+/- 0.4) mm |
| Product Weight | 1.21 lb(US) (0.55 kg) |
| Product Or Component Type | Small panel with keypad |
| Display Colour | Green |
| Display Capacity | 4 lines of 20 characters maximum 1 line of 5 characters minimum |
| Us Rated Supply Voltage | 5 V DC |
| Supply | From PLC (terminal port) |
| Downloadable Protocols | Modbus Uni-TE |
| Standards | UL 508 CSA C22.2 No 14 IEC 60068-2-6 IEC 60068-2-27 IEC 61131-2 |
| Product Certifications | UL 1604 ATEX zone 2/22 UL Class 1 Division 2 CSA Class 1 Division 2 |
| Ambient Air Temp For Op | 32…131 °F (0…55 °C) |
| Ambient Air Temp For Storage | -4…140 °F (-20…60 °C) |
| Relative Humidity | 0…85 % without condensation |
| IP Degree Of Protection | IP20 IEC 60529 rear panel) IP65 IEC 60529 front panel) |
| Nema Degree Of Protection | NEMA 4X front panel outdoor use) |
| Shock Resistance | 15 gn 11 ms |
| Vibration Resistance | +/- 3.5 mm 2…8.45 Hz) 1 gn 8.45…150 Hz) |
| Category | 22570 - MAGELIS TEXT DISPLAYS & ACCESS |
| Discount Schedule | MC2 |
| GTIN | 00785901602620 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | CN |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
