VW3E6001
Single drive connectors and Sercos cable for Lexium 62 single drive – 0.09 m
Specifications
| Part Number | VW3E6001 |
|---|---|
| Country of Origin | DE |
| UPC | 606485306384 |
| UPC11 | 60648530638 |
| EAN | 3606485306384 |
| Availability | N |
| Lead Time | 40 |
| ECCN | EAR99 |
| HTs Code | 8504904100 |
| Discount Schedule | PC52 |
| Return Indicator | No |
| Weight | 0.06 pound |
Characteristics
| Range Of Product | PacDrive 3 |
|---|---|
| Accessory / Separate Part Cate | Connection accessory |
| Product Or Component Type | Connector kit |

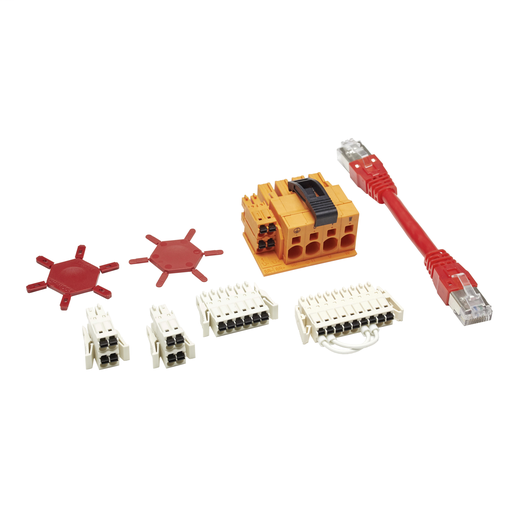

| Kit Composition | 1 connector, CN7 holding brake and temperature 1 connector, CN8 motor power 1 connector, CN6 safe torque off 1 connector, CN11 safe torque off 1 connector, CN5 I/O supply 1 connector, CN4 I/O 2 coding pin 1 connection cable Sercos |
| Range Compatibility | Lexium 62 |
| Product Compatibility | LXM 62 servo drive |
| Length | 3.54 in (90 mm) |
| Product Weight | 0.06 lb(US) (0.027 kg) |
| Category | 18353-PACDRIVE3 ACCESSORIES |
| Discount Schedule | PC52 |
| GTIN | 03606485306384 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | DE |
| Warranty | 18 months |
