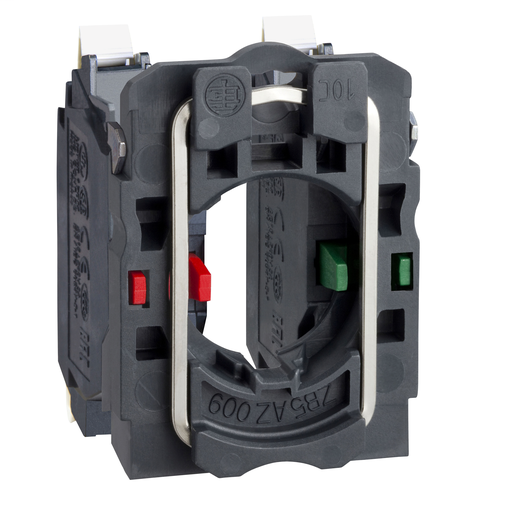

Single contact block with body/fixing collar 1NC+1NC spring clamp terminal
ZB5AZ1055
Single contact block with body/fixing collar 1NC+1NC spring clamp terminal
Specifications
Part Number ZB5AZ1055
Country of Origin FR
UPC 785901683049
UPC11 78590168304
EAN 3389119039291
Availability S
Lead Time 9
UNSPSC 39122216
ECCN EAR99
HTs Code 8538908180
Prop 65 This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
RoHS Compliant Yes
Discount Schedule CS2
Return Indicator No
Characteristics
Range Of Product Harmony XB5
Product Or Component Type Complete body/contact assembly
Device Short Name ZB5
Fixing Collar Material Plastic
Sale Per Indivisible Qty 1
Head Type Standard
Contacts Type And Composition 1 NO + 1 NC
Contact Operation Slow-break
Contact Block Type Single
Connections - Terminals Spring clamp terminals
Cad Overall Width 1.18 in (30 mm)
Cad Overall Height 1.65 in (42 mm)
Cad Overall Depth 1.26 in (32 mm)
Terminals Description ISO n°1 (11-12)NC (13-14)NO
Device Composition Fixing collar Body
Contacts Usage Standard contacts
Positive Opening With EN/IEC 60947-5-1 appendix K
Operating Travel 0.06 in (1.5 mm) NC changing electrical state) 0.10 in (2.6 mm) NO changing electrical state) 0.17 in (4.3 mm) total travel)
Mechanical Durability 10000000 cycles
Contacts Material Silver alloy (Ag/Ni)
Protective Treatment TH
Ambient Air Temp For Storage -40…158 °F (-40…70 °C)
Ambient Air Temp For Op -40…158 °F (-40…70 °C)
IP Degree Of Protection IP20 IEC 60529
Standards EN/IEC 60947-5-1 EN/IEC 60947-1 CSA C22.2 No 14 EN/IEC 60947-5-4 JIS C8201-5-1 UL 508 JIS C8201-1
Product Certifications UL GL LROS (Lloyds register of shipping) DNV BV RINA CSA
Vibration Resistance 5 gn 2…500 Hz)IEC 60068-2-6
Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Category 22469 - PUSHBUTTON,22MM ACCESSORIES-NEW
Discount Schedule CS2
GTIN 00785901683049
Nbr. Of Units In Pkg. 1
Country Of Origin FR
Green Premium Status Green Premium product
REACh Free Of SVHC Yes
EU RoHs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Toxic Heavy Metal Free Yes
Mercury Free Yes
WEEE The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Warranty 18 months
