| Range Of Product |
Harmony XB4 |

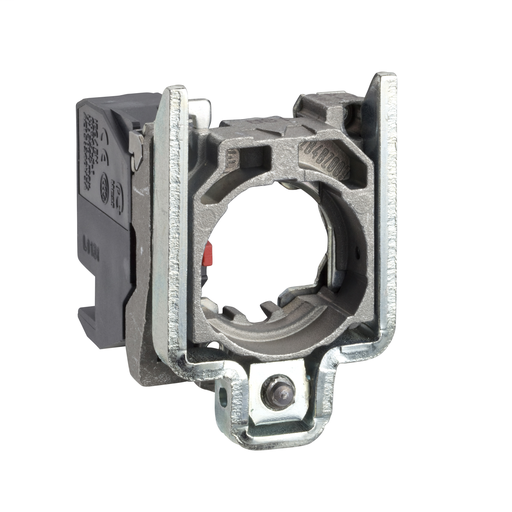

| Product Or Component Type |
Complete body/contact assembly |
| Device Short Name |
ZB4 |
| Fixing Collar Material |
Zamak |
| Sale Per Indivisible Qty |
1 |
| Head Type |
Standard |
| Contacts Type And Composition |
1 NC |
| Contact Operation |
Slow-break |
| Contact Block Type |
Single |
| Device Composition |
Body
Fixing collar |
| Connections - Terminals |
Plug-in connector |
| Cad Overall Width |
1.18 in (30 mm) |
| Cad Overall Height |
1.85 in (47 mm) |
| Cad Overall Depth |
1.46 in (37 mm) |
| Terminals Description ISO n°1 |
(11-12)NC |
| Product Weight |
0.11 lb(US) (0.05 kg) |
| Contacts Usage |
Standard contacts |
| Positive Opening |
With EN/IEC 60947-5-1 appendix K |
| Operating Travel |
0.06 in (1.5 mm) NC changing electrical state)
0.17 in (4.3 mm) total travel) |
| Operating Force |
2 N NC changing electrical state |
| Mechanical Durability |
5000000 cycles |
| Contacts Material |
Silver alloy (Ag/Ni) |
| Short-Circuit Protection |
4 A cartridge fuse gG EN/IEC 60947-5-1 |
| Ith Cnvtl Free Air Therm Crrt |
10 A EN/IEC 60947-5-1 |
| Ui Rated Insulation Voltage |
250 V 3)EN 60947-1 |
| Uimp Rated Imp Wstd Voltage |
4 kV EN 60947-1 |
| Ie Rated Operational Current |
3 A 240 V, AC-15, A300 EN/IEC 60947-5-1
6 A 120 V, AC-15, A300 EN/IEC 60947-5-1
0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1
0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 |
| Electrical Durability |
10000000 cycles, AC-15, 1 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
10000000 cycles, AC-15, 1.5 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
10000000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
10000000 cycles, DC-13, 0.15 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
10000000 cycles, DC-13, 0.4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Electrical Reliability |
Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4
Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4 |
| Protective Treatment |
TH |
| Ambient Air Temp For Storage |
-40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op |
-40…158 °F (-40…70 °C) |
| IP Degree Of Protection |
IP20 IEC 60529 |
| Standards |
EN/IEC 60947-5-4
JIS C8201-5-1
EN/IEC 60947-1
EN/IEC 60947-5-1
CSA C22.2 No 14
EN/IEC 60947-5-5
UL 508
JIS C8201-1 |
| Product Certifications |
CSA
RINA
BV
DNV
UL
LROS (Lloyds register of shipping)
GL |
| Vibration Resistance |
5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance |
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Category |
22469 - PUSHBUTTON,22MM ACCESSORIES-NEW |
| Discount Schedule |
CS2 |
| GTIN |
00785901396291 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
FR |
| Green Premium Status |
Green Premium product |
| REACh Free Of SVHC |
Yes |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free |
Yes |
| Mercury Free |
Yes |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty |
18 months |
