| Range Of Product |
Harmony XB4
Harmony XB5 |

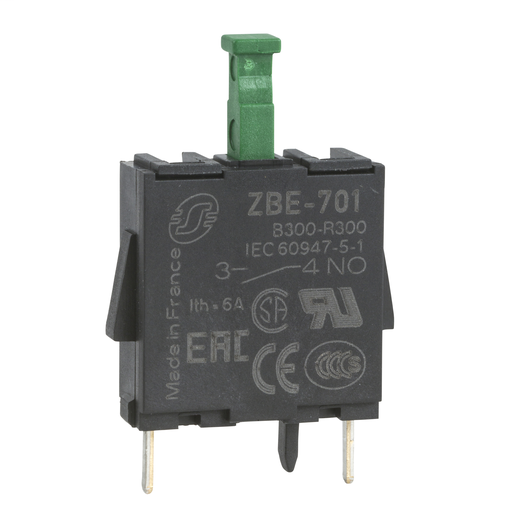

| Product Or Component Type |
Contact block |
| Device Short Name |
ZBE |
| Sale Per Indivisible Qty |
5 |
| IP Degree Of Protection |
IP20 IEC 60529 |
| Contacts Type And Composition |
1 NO |
| Contact Operation |
Slow-break |
| Contact Block Type |
Single |
| Contacts Usage |
Standard contacts |
| Connections - Terminals |
Pins for printed circuit board |
| Product Weight |
0.02 lb(US) (0.011 kg) |
| Positive Opening |
Without |
| Operating Travel |
0.10 in (2.6 mm) NO changing electrical state)
0.17 in (4.3 mm) total travel) |
| Operating Force |
2.3 N NO changing electrical state |
| Mechanical Durability |
5000000 cycles |
| Contacts Material |
Silver alloy (Ag/Ni) |
| Short-Circuit Protection |
4 A cartridge fuse gG EN/IEC 60947-5-1 |
| Ith Cnvtl Free Air Therm Crrt |
6 A EN/IEC 60947-5-1 |
| Ui Rated Insulation Voltage |
250 V 3)EN 60947-1 |
| Uimp Rated Imp Wstd Voltage |
4 kV EN 60947-1 |
| Ie Rated Operational Current |
3 A 120 V, AC-15, B300 EN/IEC 60947-5-1
1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1
0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1
0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 |
| Electrical Reliability |
Λ < 10exp(-7), 1 mA in clean environment EN/IEC 60947-5-4
Λ < 10exp(-8), 5 mA in clean environment EN/IEC 60947-5-4 |
| Protective Treatment |
TH |
| Ambient Air Temp For Storage |
-40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op |
-13…158 °F (-25…70 °C) |
| Standards |
EN/IEC 60947-5-1
EN/IEC 60947-1
UL 508
EN/IEC 60947-5-4
JIS C8201-5-1
CSA C22.2 No 14
JIS C8201-1 |
| Product Certifications |
UL
GL
RINA
CSA
BV
LROS (Lloyds register of shipping)
DNV |
| Vibration Resistance |
5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance |
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Category |
22469 - PUSHBUTTON,22MM ACCESSORIES-NEW |
| Discount Schedule |
CS2 |
| GTIN |
00785901355670 |
| Nbr. Of Units In Pkg. |
10 |
| Country Of Origin |
FR |
| Green Premium Status |
Green Premium product |
| REACh Free Of SVHC |
Yes |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free |
Yes |
| Mercury Free |
Yes |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty |
18 months |
