| Range Of Product |
Harmony XB5
Harmony XB4 |
| Product Or Component Type |

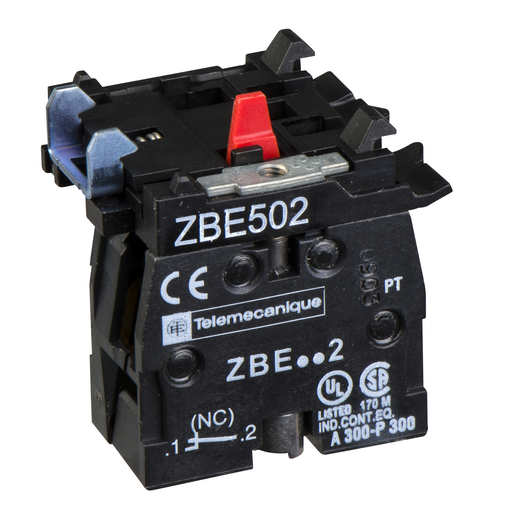

Contact block |
| Device Short Name |
ZBE |
| Sale Per Indivisible Qty |
1 |
| IP Degree Of Protection |
IP20 IEC 60529 |
| Contacts Type And Composition |
1 NC |
| Contact Operation |
Slow-break |
| Contact Block Type |
Single |
| Contacts Usage |
High power switching contacts |
| Connections - Terminals |
Screw clamp terminals, <= 1 x 2.5 mm² with cable end
Screw clamp terminals, <= 2 x 1.5 mm² with cable end
Screw clamp terminals, <= 2 x 2.5 mm² without cable end
Screw clamp terminals, >= 1 x 0.5 mm² without cable end |
| Product Weight |
0.04 lb(US) (0.02 kg) |
| Positive Opening |
With |
| Mechanical Durability |
10000000 cycles |
| Short-Circuit Protection |
10 A cartridge fuse gG EN/IEC 60947-5-1 |
| Ith Cnvtl Free Air Therm Crrt |
10 A EN/IEC 60947-5-1 |
| Ui Rated Insulation Voltage |
300 VEN 60947-1 |
| Uimp Rated Imp Wstd Voltage |
6 kV EN 60947-1 |
| Ie Rated Operational Current |
1.1 A 125 V, DC-13, P300 EN/IEC 60947-5-1 |
| Mounting Of Block |
Front mounting |
| Condition Of Use |
Mounting on push-button collar |
| Electrical Composition Code |
C15 1) |
| Ambient Air Temp For Storage |
-40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op |
-40…158 °F (-40…70 °C) |
| Vibration Resistance |
5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance |
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| GTIN |
03389119042222 |
| Nbr. Of Units In Pkg. |
1 |
| Green Premium Status |
Green Premium product |
| REACh Free Of SVHC |
Yes |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free |
Yes |
| Mercury Free |
Yes |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty |
18 months |
