| Range Of Product |
Harmony XB4
Harmony XB5 |
| Product Or Component Type |

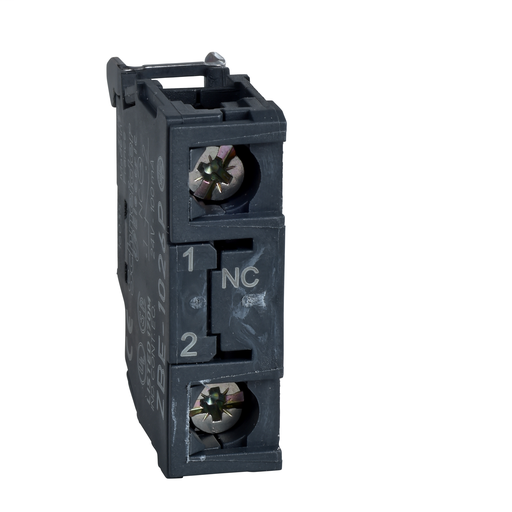

Contact block |
| Device Short Name |
ZBE |
| Sale Per Indivisible Qty |
5 |
| IP Degree Of Protection |
IP20 IEC 60529 |
| Contacts Type And Composition |
1 NC |
| Contact Operation |
Slow-break |
| Contact Block Type |
Single |
| Contacts Usage |
Low power switching contacts |
| Connections - Terminals |
Screw terminals for lug |
| Positive Opening |
With EN/IEC 60947-5-1 appendix K |
| Operating Travel |
0.06 in (1.5 mm) NC changing electrical state)
0.17 in (4.3 mm) total travel) |
| Operating Force |
2 N NC changing electrical state |
| Mechanical Durability |
10000000 cycles |
| Contacts Material |
Gold flashed (Ag/Ni/Au) contacts |
| Electrical Reliability |
Λ < 5 x 10exp(-8), 1 mA in clean environment EN/IEC 60947-5-4 |
| Mounting Of Block |
Front mounting |
| Condition Of Use |
Mounting on push-button collar |
| Electrical Composition Code |
C1 9)
C2 7)
C3 6)
C4 4)
C5 5)
C6 3)
C7 4)
C8 2)
C9 3)
C12 6)
M1 6)
M2 4)
M3 4)
M5 2)
M6 2)
M7 6)
M8 4)
M9 2)
SF1 3)
SF2 2)
MF1 2)
MF2 2)
C10 2)
M4 2)
C13 1) |
| Protective Treatment |
TH |
| Ambient Air Temp For Storage |
-40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op |
-40…158 °F (-40…70 °C) |
| Standards |
CSA C22.2 No 14
EN/IEC 60947-5-4
UL 508
EN/IEC 60947-5-1
EN/IEC 60947-1
JIS C8201-5-1
JIS C8201-1 |
| Product Certifications |
UL
GL
BV
CSA
LROS (Lloyds register of shipping)
RINA
DNV |
| Vibration Resistance |
5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance |
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| GTIN |
03389110177497 |
| Green Premium Status |
Green Premium product |
| REACh Free Of SVHC |
Yes |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free |
Yes |
| Mercury Free |
Yes |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty |
18 months |
