| Range |
Spacial |

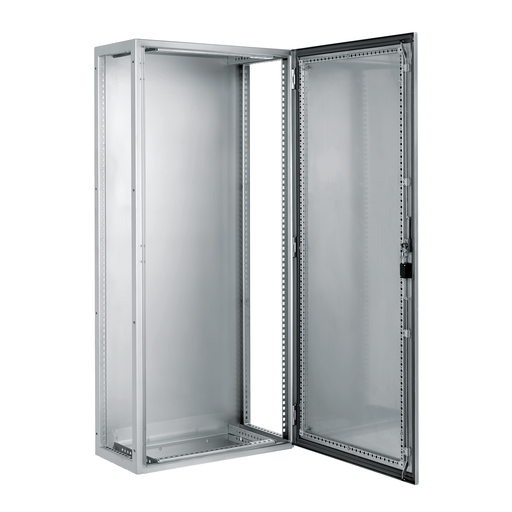

| Product Name |
Spacial SFX |
| Enclosure Type |
Multi-purpose |
| Category |
Suitable enclosure |
| Nominal Height |
70.87 in (1800 mm) |
| Nominal Width |
31.50 in (800 mm) |
| Nominal Depth |
15.75 in (400 mm) |
| Product Installation |
Floor-standing |
| Device Composition |
1 structure
1 locking system with handle door
4 mounting plate bracket
1 cable gland plate
1 door with reinforcement frame |
| Body Type |
Single piece structure folded and welded
Rear panel integrated |
| Door Type |
Solid |
| Number Of Doors |
Front face 1 |
| Door Opening Side |
Reversible 120 °) |
| Lock Type |
3 points lock, handle with 5 mm double-bar insert |
| Mounting Plate Description |
Without mounting plate |
| Type Of Gland Plate |
Plain |
| Accessibility For Operation |
Front
Side |
| Removable Parts |
Door by hinges
Mounting plate bracket by screws
Cable gland plate by clips |
| Material |
Structure and door stainless steel 304L
Handle zamak
Hinge stainless steel |
| Surface Finish |
Enclosure Scotch-Brite® brushed
Handle painted |
| Product Weight |
198.42 lb(US) (90 kg) |
| Standards |
IEC 62208
NEMA 4X |
| Product Certifications |
UL |
| IP Degree Of Protection |
IP66 IEC 60529 |
| IK Degree Of Protection |
IK10 IEC 62262 |
| Environmental Characteristic |
Corrosive
Specific hygiene |
| Category |
80035 - ENCLOSURE SYSTEMS FLOOR MOUNT |
| Discount Schedule |
ES1 |
| GTIN |
03606480155642 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
BG |
| Green Premium Status |
Green Premium product |
| REACh Free Of SVHC |
Yes |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free |
Yes |
| Warranty |
18 months |
