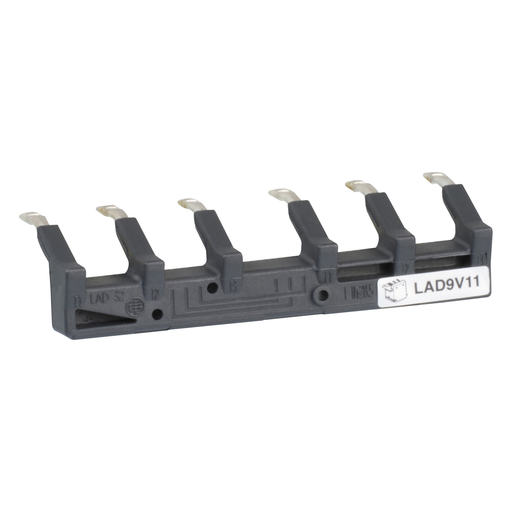

LAD9V11
Set of power connections, inversing busbar, for 3P reversing contactors assembly, LC1D09-D38 lugs terminals
TeSys D power connection module for 3-pole contactors LC1D093-D323 (with spring terminals). For assembling contactors in reversing motor starters and when using LAD331 and LAD341 power connection modules. It provides the reverser connection of 2 contactors on motor side. Green Premium compliant (RoHS/REACh).
Add to Quote CatalogueSpecifications
| Part Number | LAD9V11 |
|---|---|
| Country of Origin | FR |
| UPC | 389110272116 |
| UPC11 | 38911027211 |
| EAN | 3389110272116 |
| Availability | N |
| Lead Time | 23 |
| UNSPSC | 39121409 |
| ECCN | EAR99 |
| HTs Code | 8536904000 |
| RoHS Compliant | Yes |
| Discount Schedule | I12 |
| Return Indicator | No |
Characteristics
| Range Of Product | TeSys D |
|---|---|
| Range | TeSys Linergy |
| Device Short Name | LAD9 |
| Product Or Component Type | Set of connections |
| Poles Description | 3P |
| Electrical Circuit Type | Reversing contactor |
| Range Compatibility | TeSys D |
| Product Compatibility | LC1D09 LC1D12 LC1D18 LC1D25 LC1D32 LC1D38 |
| Mounting Location | Downstream |
| Connections - Terminals | lugs-ring terminals |
| Category | 22354 - CTR,TESYS D,OPEN,9-38A AC |
| Discount Schedule | I12 |
| GTIN | 03389110272116 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | FR |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Compliant |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
