9001KS11K1R
SELECTOR SWITCH OPERATOR 30MM T-K

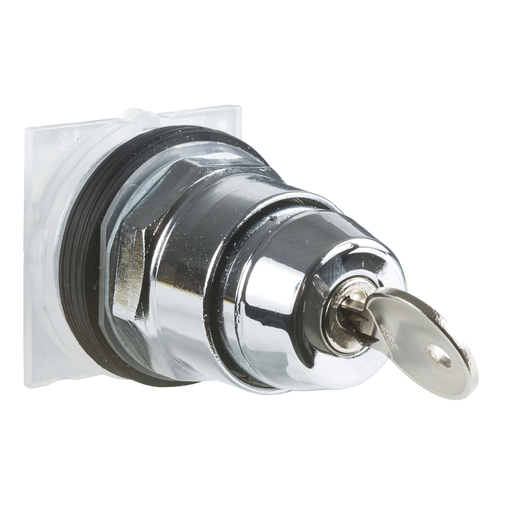

This Harmony 9001K, black key operated selector switch with E cam has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel. This key operated selector switch provides a versatile interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Add to Quote CatalogueSpecifications
| Part Number | 9001KS11K1R |
|---|---|
| Country of Origin | MX |
| UPC | 785901831273 |
| UPC11 | 78590183127 |
| EAN | 3389119001298 |
| Availability | N |
| Lead Time | 5 |
| UNSPSC | 39122217 |
| ECCN | EAR99 |
| HTs Code | 8538908180 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS1 |
| Return Indicator | No |
| Weight | 0.46 pound |
Characteristics
| Range Of Product | Harmony 9001KS |
|---|---|
| Product Or Component Type | Selector switch |
| Device Short Name | 9001K |
| Type Of Operator | stay put |
| Operator Profile | key switch |
| Bezel Material | Chromium plated metal |
| Mounting Diameter | 1.18 in (30 mm) |
| Product Weight | 0.46 lb(US) (0.207 kg) |
| Shape Of Signaling Unit Head | Octagonal |
| Operator Pos Information | 2 positions |
| Type Of Keylock | Ronis |
| Key Number | 455 |
| Key Withdrawal Position | Left |
| Contacts Type And Composition | Without contact block |
| Mechanical Durability | 500000 cycles |
| Product Compatibility | 9001KA1 side 1 or 2 9001KA2 side 1 or 2 |
| Device Presentation | Basic element |
| Protective Treatment | TC |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -13…158 °F (-25…70 °C) |
| Overvoltage Category | Class II IEC 61140 |
| IP Degree Of Protection | IP66 IEC 60529 |
| Nema Degree Of Protection | NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 |
| Standards | JIS C 852 EN/IEC 60947-1 CSA C22.2 No 14 EN/IEC 60947-5-1 UL 508 EN/IEC 60947-5-4 JIS C 4520 |
| Product Certifications | NEMA UL 508 |
| Vibration Resistance | 7 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Category | 21429 - 9001 SK,SKY |
| Discount Schedule | CS1 |
| GTIN | 00785901831273 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
