XB4FD33

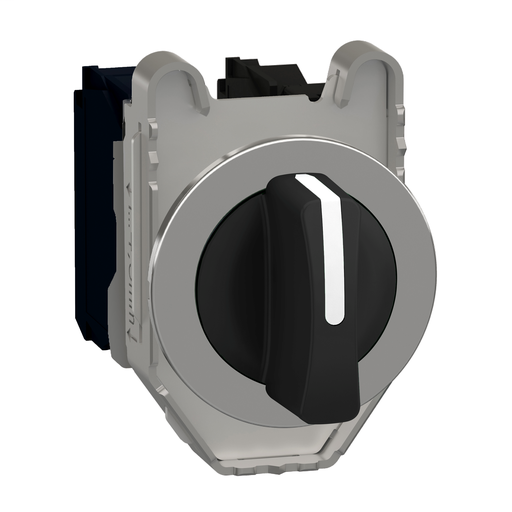

Selector switch flush mounted, metal, black, Ø30, 3 positions, stay put, 2 NO
This selector switch provides an ergonomic interface for controlling your machine. It is easily installed and into a standard 30.5mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
Add to Quote CatalogueSpecifications
| Part Number | XB4FD33 |
|---|---|
| EAN | 3606489580179 |
| Availability | N |
| Lead Time | 23 |
| ECCN | EAR99 |
| HTs Code | 8538908180 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS2 |
| Depth | 2.76 inch |
| Height | 1.85 inch |
| Width | 1.44 inch |
| Weight | 0.23 pound |
Characteristics
| Range Of Product | Harmony XB4 |
|---|---|
| Product Or Component Type | Selector switch |
| Device Short Name | XB4F |
| Bezel Material | Chromium plated metal |
| Fixing Collar Material | Zamak |
| Mounting Diameter | 1.20 in (30.5 mm) |
| Sale Per Indivisible Qty | 1 |
| Head Type | Built-in-flush |
| Shape Of Signaling Unit Head | Round |
| Type Of Operator | stay put |
| Operator Profile | Black standard handle |
| Operator Pos Information | 3 positions +/- 45° |
| Contacts Type And Composition | 2 NO |
| Contact Operation | Slow-break |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1 |
| Height | 1.85 in (47 mm) |
| Width | 1.44 in (36.6 mm) |
| Depth | 2.76 in (70 mm) |
| Terminals Description ISO n°1 | (23-24)NO (13-14)NO |
| Product Weight | 0.23 lb(US) (0.105 kg) |
| Resistance High Press Washer | 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Device Mounting | Built-in |
| Fixing Center | 40 x 50 mm 1...6 mm thick panel) |
| Fixing Mode | By screws |
| Contacts Usage | Standard contacts |
| Positive Opening | Without |
| Torque Value | 1.24 lbf.in (0.14 N.m) NO changing electrical state |
| Mechanical Durability | 1000000 cycles |
| Tightening Torque | 7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1 |
| Shape Of Screw Head | Cross Philips no 1 Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm |
| Contacts Material | Silver alloy (Ag/Ni) |
| Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
| Ith Cnvtl Free Air Therm Crrt | 10 A EN/IEC 60947-5-1 |
| Ui Rated Insulation Voltage | 600 V 3)EN 60947-1 |
| Uimp Rated Imp Wstd Voltage | 6 kV EN 60947-1 |
| Ie Rated Operational Current | 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C |
| Electrical Reliability | Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4 |
| Device Presentation | Complete product |
| Protective Treatment | TH |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -40…158 °F (-40…70 °C) |
| Overvoltage Category | Class I IEC 60536 |
| IP Degree Of Protection | IP66 IEC 60529 IP67 IEC 60529 IP69 IEC 60529 IP69K ISO 20653 Type 13 UL 50 E Type 12 UL 50 E Type 4 UL 50 E Type 4X UL 50 E |
| IK Degree Of Protection | IK06 IEC 50102 |
| Standards | CSA C22.2 No 14 EN/IEC 60947-5-1 EN/IEC 60947-5-4 UL 508 EN/IEC 60947-1 JIS C8201-5-1 CE JIS C8201-1 |
| Product Certifications | UL Listed CSA CCC EAC |
| Vibration Resistance | 5 gn 10…500 Hz)IEC 60068-2-6 2 mm peak to peak 2…10 Hz)IEC 60068-2-6 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
| Nbr. Of Units In Pkg. | 1 |
