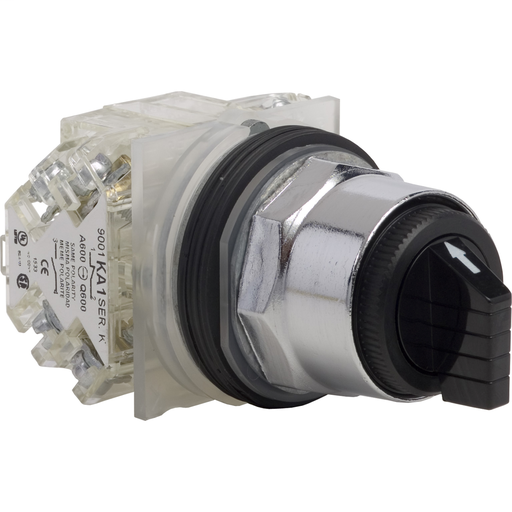

9001KS53BH2
SELECTOR SWITCH 600VAC 10A 30MM TYPE K
This Harmony 9001KS53BH2 is a selector switch 600VAC, 10A. It is part of the range Harmony 9001 K diameter 30mm metal push buttons, switches, pilot lights.
Brand: Square D
Add to Quote CatalogueSpecifications
| Part Number | 9001KS53BH2 |
|---|---|
| Country of Origin | MX |
| UPC | 785901856481 |
| UPC11 | 78590185648 |
| EAN | 0785901856481 |
| Availability | S |
| Lead Time | 4 |
| UNSPSC | 39122216 |
| HTs Code | 8536509025 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS1 |
| Return Indicator | Yes |
Characteristics
| Range Of Product | Harmony 9001K |
|---|---|
| Product Or Component Type | Selector switch |
| Device Short Name | K |
| Type Of Operator | spring return |
| Operator Profile | Black standard knob |
| Bezel Material | Chromium plated metal |
| Mounting Diameter | 1.18 in (30 mm) |
| Operator Pos Information | 3 positions |
| Contacts Type And Composition | 2 NO + 2 NC |
| Connections - Terminals | Screw-clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1 |
| Device Presentation | Complete product |
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/6/12/13 |
| Product Certifications | CSA LR24590 class 3211 03 CE UL listed file E42259 CCN NKCR |
| Category | 21426 - 9001 K (NOT KA,KM,KX) |
| Discount Schedule | CS1 |
| GTIN | 00785901856481 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
