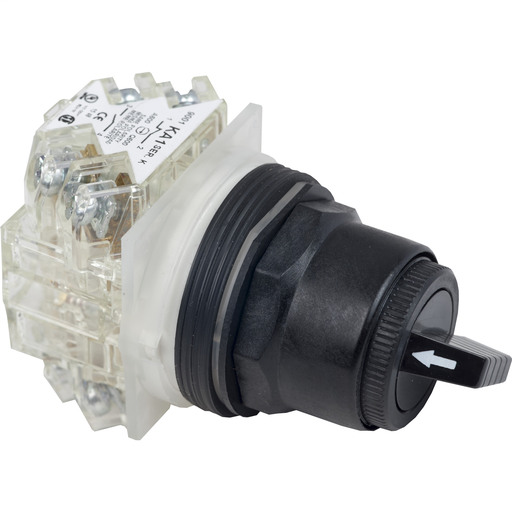

SELECTOR SWITCH 600VAC 10A 30MM SK
This selector switch is part of the range of control and signaling units, Harmony 9001SK diameter 30mm plastic. It has a double insulated bezel. It is supplied with a black standard knob. Thanks to its double insulated bezel it is adapted for applications requiring a high resistance to corrosion. It is easily installed into a standard 30mm diameter panel cut-outs and its protection index is IP66. It features 2 positions maintained operator and is supplied with 2 x NO + 2 x NC contacts and screw clamp terminals. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Add to Quote CatalogueSpecifications
| Part Number | 9001SKS11BH2 |
|---|---|
| Country of Origin | MX |
| UPC | 785901043539 |
| UPC11 | 78590104353 |
| EAN | 3389118036215 |
| Availability | S |
| Lead Time | 4 |
| UNSPSC | 39122216 |
| HTs Code | 8536509025 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS1 |
| Return Indicator | Yes |
Characteristics
| Range Of Product | Harmony 9001SK |
|---|---|
| Product Or Component Type | Selector switch |
| Device Short Name | 9001SK |
| Bezel Material | Plastic |
| Mounting Diameter | 1.18 in (30 mm) |
| Device Presentation | Complete product |
| Protective Treatment | TC |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -13…158 °F (-25…70 °C) |
| Electrical Shock Protect Class | Class II IEC 61140 |
| IP Degree Of Protection | IP66 IEC 60529 |
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/4X/6/12/13 |
| Product Certifications | CE CSA LR24590 class 3211 03 UL listed file E42259 CCN NKCR |
| Category | 21429 - 9001 SK,SKY |
| Discount Schedule | CS1 |
| GTIN | 00785901043539 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
