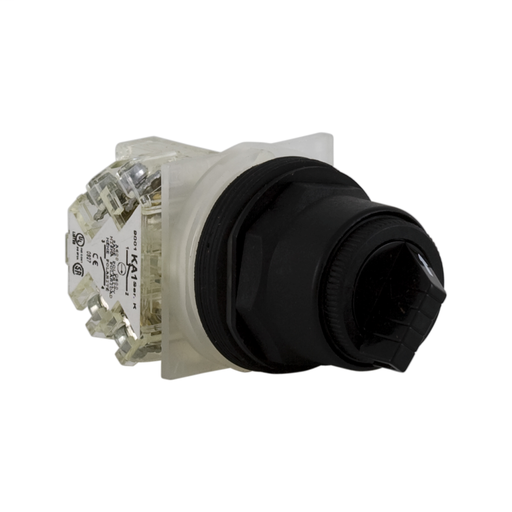

9001SKS11BH161
SELECTOR SWITCH 600VAC 10A 30MM SK
Specifications
| Part Number | 9001SKS11BH161 |
|---|---|
| Country of Origin | MX |
| UPC | 785901716235 |
| UPC11 | 78590171623 |
| EAN | 0785901716235 |
| Availability | N |
| Lead Time | 4 |
| UNSPSC | 39122216 |
| ECCN | EAR99 |
| HTs Code | 8536509025 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS1 |
| Return Indicator | No |
Characteristics
| Bezel Material | Black plastic |
|---|---|
| Device Short Name | SK |
| Mounting Diameter | 1.18 in (30 mm) |
| In Rated Current | 3 A |
| Operator Pos Information | 2 positions |
| Operator Profile | Standard knob |
| Operator Profile | 1 projecting push-button |
| Utilisation Category | AC-15 DC-13 |
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/4X/6/12/13 |
| Product Certifications | CSA LR24590 class 3211 03 CE UL listed file E42259 CCN NKCR |
| Category | 21429 - 9001 SK,SKY |
| Discount Schedule | CS1 |
| GTIN | 00785901716235 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
