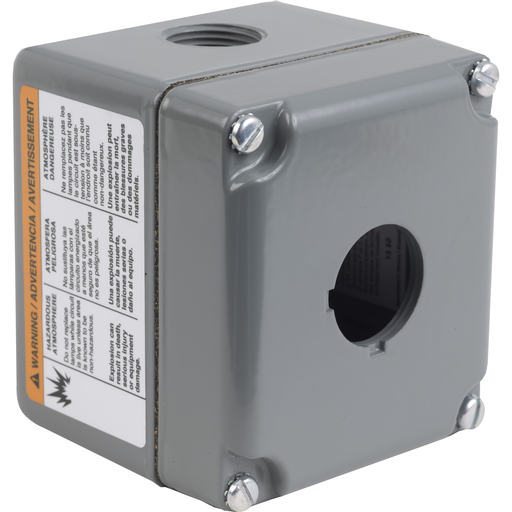

9001KY195
SECURITY CONTROL STATION 600VAC 15A
Specifications
| Part Number | 9001KY195 |
|---|---|
| Country of Origin | MX |
| UPC | 785901347460 |
| UPC11 | 78590134746 |
| EAN | 0785901347460 |
| Availability | N |
| Lead Time | 5 |
| UNSPSC | 39121565 |
| HTs Code | 8537109170 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS1 |
| Return Indicator | No |
| Weight | 3.55 pound |
Characteristics
| Range Of Product | Harmony 9001K |
|---|---|
| Product Or Component Type | Security control station |
| Device Short Name | 9001KY |
| Lock Type | Complete with core, 7 tumbler pins |
| Size | 30 mm |
| Enclosure/Cubicle Description | Surface mounting |
| Enclosure Material | Cast aluminium |
| Type Of Installation | Indoor/outdoor |
| Control Station Composition | 1 key selector switch, spring return OPEN-CLOSE |
| Type Of Keylock | Best |
| Key Withdrawal Position | Center |
| Connections - Terminals | Screw clamp terminal |
| Ue Rated Operational Voltage | 300 V |
| Ie Rated Operational Crrt Ac | 15 A |
| Product Weight | 3.55 lb(US) (1.61 kg) |
| Nema Degree Of Protection | NEMA 3R |
| Environmental Characteristic | Waterproof |
| Product Certifications | CE UL Listed CSA |
| Ambient Air Temp For Op | -13…140 °F (-25…60 °C) |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Category | 21426 - 9001 K (NOT KA,KM,KX) |
| Discount Schedule | CS1 |
| GTIN | 00785901347460 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| Warranty | 18 months |
