| Range |
Linergy |
| Product Name |

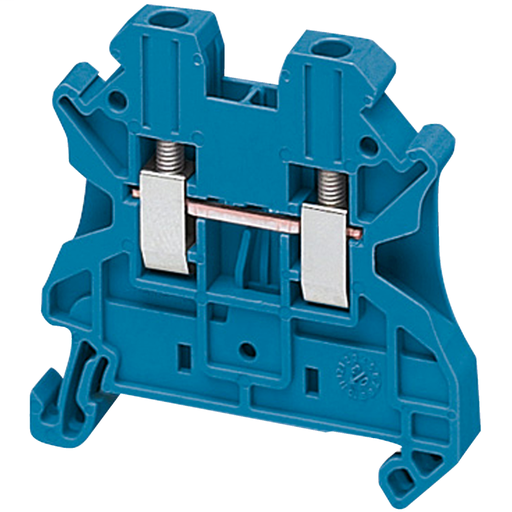

Linergy TR |
| Product Or Component Type |
Terminal block |
| Device Short Name |
TRV |
| Accessory / Separate Part Cate |
Connection accessory |
| Terminal Block Type |
Passthrough |
| Terminal Block Level |
1 |
| Mounting Mode |
Clip-on |
| Nominal Cross Section |
0.00 in² (2.5 mm²) |
| Length |
1.88 in (47.7 mm) |
| Colour |
Blue |
| Quantity Per Set |
Set of 50 |
| Width |
0.20 in (5.2 mm) |
| Height |
1.87 in (47.5 mm) |
| Connections - Terminals |
1 x screw terminal upstream M3)
1 x screw terminal downstream M3) |
| Number Of Connections |
2 |
| Connection Position |
Sideways |
| Number Of Measurement Input |
2 |
| Cable Cross Section |
0.00…0.01 in² (0.14…4 mm²), solid with cable end
0.00…0.00 in² (0.2…2.5 mm²), flexible with cable end
0.00…0.01 in² (0.14…4 mm²), solid without cable end
0.00…0.01 in² (0.14…4 mm²), flexible without cable end |
| Tightening Torque |
4.43…5.31 lbf.in (0.5…0.6 N.m) |
| Wire Stripping Length |
0.35 in (9 mm) |
| Tool Type |
Connection screwdriver
Disconnection screwdriver |
| Ue Rated Operational Voltage |
1000 V EN/IEC 60947-7-1
600 V CSA
690 V ATEX Exe II Ex II 2 GD
600 V cURus |
| In Rated Current |
24 A EN/IEC 60947-7-1
22 A ATEX Exe II Ex II 2 GD
20 A cURus
20 A CSA |
| Material |
Polyamide 6/6 insulating case
Copper alloy connector and screw
Copper alloy commoning link
Chromium-nickel steel spring |
| Dielectric Loss |
0.01 at 1 MHz IEC 60250
0.01 at 1 MHz VDE 0303-T4 |
| Dielectric Constant |
3.7 at 1 MHz |
| Resistivity |
10000 MΩ.m IEC 60093
10000 MΩ.m VDE 0303-T30 |
| Surface Resistance |
1000 GΩ IEC 60093
1000 GΩ VDE 0303-T30 |
| Creep Resistance |
500 CTI (> 400 kB) IEC 60093
500 CTI (> 400 kB) VDE 0303-T30 |
| Flame Retardance |
V0 0.03 in (0.8 mm) UL 94 |
| Product Weight |
0.29 oz (8.2 g) |
| Range Compatibility |
Prisma G
Prisma P
Prisma PH
Prisma Pack
Spacial
Kaedra
Pragma
TeSys
Thalassa Thalassa TBP
Thalassa Thalassa TBS |
| Product Compatibility |
Spacial enclosures |
| Product Certifications |
IEC-Ex
DNV
GL
ATEX
VDE
CSA
CURus
EAC
LR |
| Dielectric Strength |
1000 V IEC 60243-1 |
| Ambient Air Temp For Op |
-40…266 °F (-40…130 °C) IEC 60216-1
-40…266 °F (-40…130 °C) VDE 0304-T21 |
| Category |
21715 - IEC TERMINAL BLOCKS-NSY,AM1,DF6,GK1 |
| Discount Schedule |
CP5 |
| GTIN |
00785901943303 |
| Nbr. Of Units In Pkg. |
50 |
| Country Of Origin |
DE |
| Green Premium Status |
Green Premium product |
| EU RoHs Directive |
Compliant |
| Mercury Free |
Yes |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty |
18 months |
