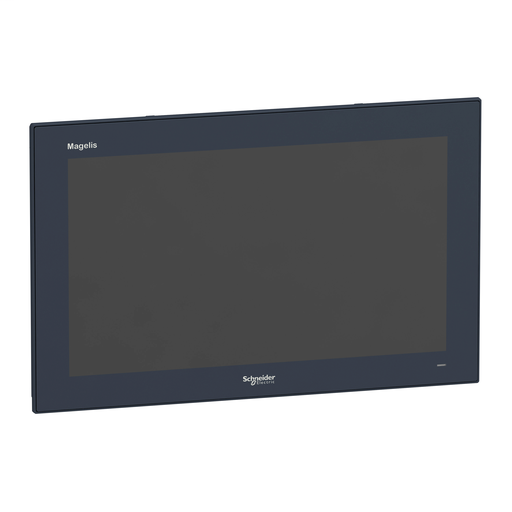

S-Panel PC Performance SSD W19 DC Windows10 IoT Enterprise
This product is part of the Harmony iPC range, an offer of Industrial PC, Edge Box and Display. The multitouch screen features 18.5inch LED, colour TFT LCD display with a resolution of 4096 x 4096 pixels. It supports Windows 10 IoT Enterprise 64bit multilanguage operating system. It is a multitouch screen with projected capacitive technology (PCT) touch panel, Intel Core i3 4010U 1.7GHz processor and Intel QM87 chipset. It is designed with RAM DDR3 internal memory of 8GB and back side SSD data storage of 128GB. It is an IP66 rated product. Its dimensions are 488mm (width) x 56.7mm (depth) x 309mm (height) and weighs 7kg. This product is certified by CE, CCC, C-Tick, RCM, EAC, AS/NZS. It meets UL 60950, CSA C22.2 No 60950, IEC 61000-6-2, CISPR 11, FCC part 15 class A, IEC 61000-6-4 and IEC 60950 standards. Harmony iPCs (formerly known as Magelis iPC) and Edge Box run at the Edge Control level of EcoStruxure, the Schneider Electric IIoT architecture. They enable secured communication from shop floor to IT. They offer smart application design and engineering to leverage asset performance, with end-to-end cybersecurity.
Add to Quote CatalogueSpecifications
| Part Number | HMIPSPS952D1801 |
|---|---|
| Country of Origin | US |
| UPC | 785901782124 |
| UPC11 | 78590178212 |
| EAN | 3606480795541 |
| Availability | N |
| Lead Time | 20 |
| UNSPSC | 43211507 |
| ECCN | EAR99 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | MC3 |
| Return Indicator | No |
| Depth | 2.23 inch |
| Height | 12.17 inch |
| Width | 19.21 inch |
| Weight | 15.43 pound |
Characteristics
| Range Of Product | Harmony iPC |
|---|---|
| Product Or Component Type | Multi-touch screen |
| Processor Name | Intel Core i3 4010U 1.7 GHz |
| Chipset Type | Intel QM87 |
| Free Slots | 1 Internal SATA HDD/SSD 1 CFast |
| Display Size | 18.5 inch |
| Display Colour | 16777216 colors |
| Luminance | 27.87 fc (300 cd/m²) |
| Pixel Resolution | 4096 x 4096 |
| Video Controller Type | Intel HD Graphics 4400 |
| Operating System | Windows 10 IoT Enterprise 64 bitmulti-language |
| Software Package | EcoStruxture secure connect advisor annual subscription cyber security license not included EcoStruxure Operator Terminal Expert run time HMI license not included EcoStruxure Machine SCADA Expert run time HMI/SCADA on configured offer only EcoStruxure augmented operator advisor server augmented operator license not included Vijeo Citect DVD SCADA license not included |
| Number Of Points | 5 |
| Terminal Type | Touchscreen display |
| Memory Type | 8 GB RAM DDR3 internal |
| Data Storage Equipment | 128 GB back side SSD 1500000 h |
| Aspect Ratio | 16:9 |
| Display Type | Colour TFT LCD LED |
| Display Resolution | 1366 x 768 pixels WXGA |
| Backlight Lifespan | 50000 hours |
| View Angle Horiz X Vert | 160 x 170° |
| Touch Panel | Projected capacitive technology (PCT) |
| Type Of Cooling | Passive Fanless |
| Watchdog Timer | 1…255 ms |
| Number Of Slots | 1 mini PCI Express full-size |
| Us Rated Supply Voltage | 24 V DC +/- 20 % 100...240 V AC with additional adaptor HMIYPSPMAC1 |
| Power Consumption In W | 28…60 W |
| Mechanical Robustness | Hardness anti-scratch 7H |
| Function Available | Operate with water on screen |
| Width | 19.21 in (488 mm) |
| Height | 12.17 in (309 mm) |
| Depth | 2.23 in (56.7 mm) |
| Cut-Out Dimensions | 479.3 (+/- 1) x 300.3 (+/- 0.7) |
| Product Weight | 15.43 lb(US) (7 kg) |
| Display Size | 19" wide multi-touch |
| Main Type | Performance |
| IP Degree Of Protection | Front panel IP66 |
| Product Certifications | RCM EAC CCC C-tick CE AS/NZS |
| Standards | UL 60950 CSA C22.2 No. 60950 IEC 61000-6-2 CISPR 11 FCC Part 15 class A IEC 61000-6-4 IEC 60950 |
| Directives | 2012/19/EU - WEEE directive 2004/108/EC - electromagnetic compatibility 1907/2006/EC - REACH directive 2011/65/EU - RoHS directive 2006/95/EC - low voltage directive |
| Pollution Degree | 2 |
| Ambient Air Temp For Op | 32…131 °F (0…55 °C) SSD 32…131 °F (0…55 °C) Cfast card 32…113 °F (0…45 °C) HDD |
| Ambient Air Temp For Storage | -4…140 °F (-20…60 °C) |
| Relative Humidity | 10…95 % non-condensing |
| Operating Altitude | 2000 |
| Vibration Resistance | 1 gn 5…500 Hz)HDD |
| Category | 22575 - MAGELIS MC3 |
| Discount Schedule | MC3 |
| GTIN | 00785901782124 |
| Nbr. Of Units In Pkg. | 1 |
