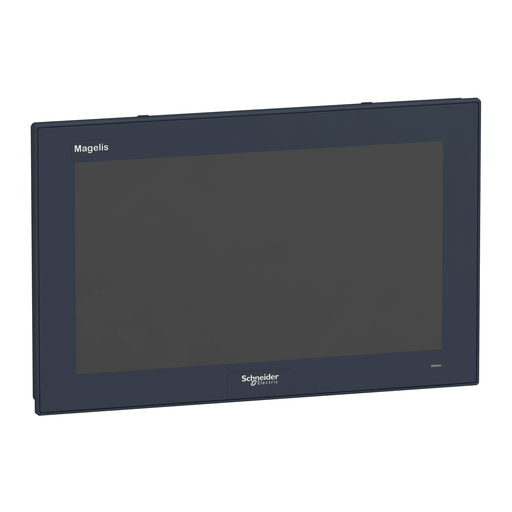

| Range Of Product |
Harmony iPC |
| Product Or Component Type |
Multi-touch screen |
| Processor Name |
Intel Core i3 4010U 1.7 GHz |
| Chipset Type |
Intel QM87 |
| Free Slots |
1 Internal SATA HDD/SSD
1 CFast |
| Display Size |
15.6 inch |
| Display Colour |
16777216 colors |
| Luminance |
27.87 fc (300 cd/m²) |
| Pixel Resolution |
4096 x 4096 |
| Video Controller Type |
Intel HD Graphics 4400 |
| Operating System |
Windows 10 IoT Enterprise 64 bitmulti-language |
| Software Package |
EcoStruxture secure connect advisor annual subscription cyber security license not included
EcoStruxure Operator Terminal Expert run time HMI license not included
EcoStruxure Machine SCADA Expert run time HMI/SCADA on configured offer only
EcoStruxure augmented operator advisor server augmented operator license not included |
| Number Of Points |
5 |
| Terminal Type |
Touchscreen display |
| Memory Type |
8 GB RAM DDR3 internal |
| Data Storage Equipment |
500 GB back side enterprise hard disk |
| Aspect Ratio |
16:9 |
| Display Type |
Colour TFT LCD
LED |
| Display Resolution |
1366 x 768 pixels WXGA |
| Backlight Lifespan |
50000 hours |
| View Angle Horiz X Vert |
160 x 170° |
| Touch Panel |
Projected capacitive technology (PCT) |
| Type Of Cooling |
Fanless
Passive |
| Watchdog Timer |
1…255 ms |
| Number Of Slots |
1 mini PCI Express full-size |
| Us Rated Supply Voltage |
24 V DC +/- 20 %
100...240 V AC with additional adaptor HMIYPSPMAC1 |
| Power Consumption In W |
18…60 W |
| Mechanical Robustness |
Hardness anti-scratch 7H |
| Function Available |
Operate with water on screen |
| Width |
16.52 in (419.7 mm) |
| Height |
10.59 in (269 mm) |
| Depth |
2.23 in (56.7 mm) |
| Cut-Out Dimensions |
412.4 (+/- 0.7) x 261.7 (+/- 0.4) |
| Product Weight |
13.23 lb(US) (6 kg) |
| Display Size |
15" wide multi-touch |
| Main Type |
Performance |
| IP Degree Of Protection |
Front panel IP66 |
| Product Certifications |
CCC
EAC
RCM
C-tick
AS/NZS
CE |
| Standards |
IEC 61000-6-4
UL 60950
CSA C22.2 No. 60950
IEC 60950
FCC Part 15 class A
CISPR 11
IEC 61000-6-2 |
| Directives |
2012/19/EU - WEEE directive
2006/95/EC - low voltage directive
2011/65/EU - RoHS directive
1907/2006/EC - REACH directive
2004/108/EC - electromagnetic compatibility |
| Pollution Degree |
2 |
| Ambient Air Temp For Op |
32…131 °F (0…55 °C) SSD
32…131 °F (0…55 °C) Cfast card
32…113 °F (0…45 °C) HDD |
| Ambient Air Temp For Storage |
-4…140 °F (-20…60 °C) |
| Relative Humidity |
10…95 % non-condensing |
| Operating Altitude |
2000 |
| Vibration Resistance |
1 gn 5…500 Hz)HDD |
| Category |
22575 - MAGELIS MC3 |
| Discount Schedule |
MC3 |
| GTIN |
00785901963660 |
| Nbr. Of Units In Pkg. |
1 |
