| Range Of Product |

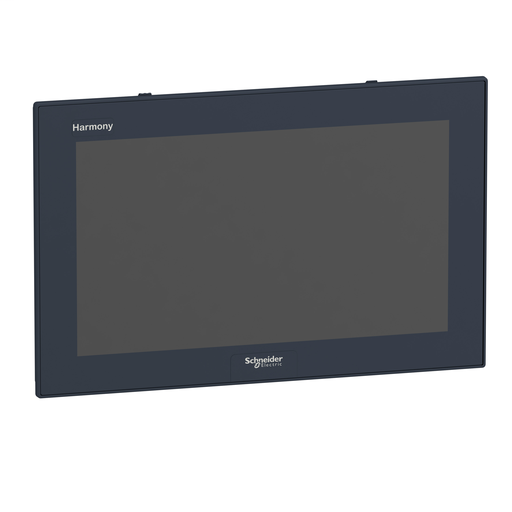

Harmony iPC |
| Product Or Component Type |
Multi-touch screen |
| Processor Name |
Intel Atom E3827 dual core 1.75 GHz |
| Chipset Type |
Intel Atom SoC |
| Free Slots |
1 Internal SATA HDD/SSD
1 CFast |
| Display Size |
15.6 inch |
| Display Colour |
16777216 colors |
| Luminance |
27.87 fc (300 cd/m²) |
| Pixel Resolution |
4096 x 4096 |
| Video Controller Type |
Intel HD Graphics |
| Operating System |
Windows 10 IoT Enterprise 64 bitmulti-language |
| Software Package |
EcoStruxture secure connect advisor annual subscription cyber security license not included
EcoStruxure Operator Terminal Expert run time HMI license not included
EcoStruxure Machine SCADA Expert run time HMI/SCADA on configured offer only
EcoStruxure augmented operator advisor server augmented operator license not included |
| Number Of Points |
5 |
| Terminal Type |
Touchscreen display |
| Memory Type |
4 GB RAM DDR3 internal |
| Data Storage Equipment |
128 GB extension back side SSD 1500000 h |
| Aspect Ratio |
16:9 |
| Display Type |
LED
Colour TFT LCD |
| Display Resolution |
1366 x 768 pixels WXGA |
| Backlight Lifespan |
50000 hours |
| View Angle Horiz X Vert |
150 x 140° |
| Touch Panel |
Projected capacitive technology (PCT) |
| Type Of Cooling |
Passive
Fanless |
| Watchdog Timer |
1…255 ms |
| Number Of Slots |
1 mini PCI Express full-size |
| Us Rated Supply Voltage |
24 V DC +/- 20 %
100...240 V AC with additional adaptor HMIYPSOMAC1 |
| In Rated Current |
1.7 A |
| Mechanical Robustness |
Hardness anti-scratch 7H |
| Local Signalling |
buzzer
On LED green)
Stand-by LED orange) |
| Function Available |
Operate with water on screen |
| Width |
16.52 in (419.7 mm) |
| Height |
10.59 in (269 mm) |
| Depth |
3.39 in (86 mm) |
| Cut-Out Dimensions |
412.4 (+/- 0.7) x 261.7 (+/- 0.4) |
| Product Weight |
8.60 lb(US) (3.9 kg) |
| Display Size |
15" wide multi-touch |
| Main Type |
Optimised |
| IP Degree Of Protection |
Front panel IP66 |
| Product Certifications |
CE
C-tick
AS/NZS
RCM
CCC
EAC |
| Standards |
CSA C22.2 No. 60950
IEC 61000-6-2
CISPR 11
UL 60950
IEC 61000-6-4
FCC Part 15 class A
IEC 60950 |
| Directives |
1907/2006/EC - REACH directive
2012/19/EU - WEEE directive
2004/108/EC - electromagnetic compatibility
2011/65/EU - RoHS directive
2006/95/EC - low voltage directive |
| Pollution Degree |
2 |
| Ambient Air Temp For Op |
32…131 °F (0…55 °C) SSD
32…131 °F (0…55 °C) Cfast card
32…113 °F (0…45 °C) HDD
32…113 °F (0…45 °C) Mini PCIe |
| Ambient Air Temp For Storage |
-4…140 °F (-20…60 °C) |
| Relative Humidity |
10…95 % non-condensing |
| Operating Altitude |
2000 |
| Vibration Resistance |
1 gn 5…500 Hz)HDD
2 gn 5…500 Hz)SSD
2 gn 5…500 Hz)Cfast card |
| Category |
22575 - MAGELIS MC3 |
| Discount Schedule |
MC3 |
| GTIN |
00785901098607 |
