XB7EV78P - Round pilot light Ø 22 – orange – bulb BA 9s – 230 V – screw clamp terminals

XB7EV78P

Round pilot light Ø 22 – orange – bulb BA 9s – 230 V – screw clamp terminals

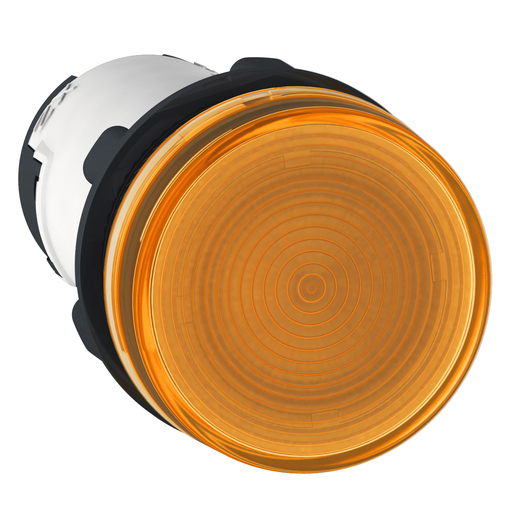

This Harmony XB7, monolithic orange pilot light is supplied with 250V AC, uses BA9s base and has screw-clamp terminals. It is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via BA9s base, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant thanks to its IP54, making it ideal for operation in low pressure environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Add to Quote Catalogue

Specifications

Part Number	XB7EV78P
UPC	389110069679
UPC11	38911006967
EAN	3389110069679
Prop 65	This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
RoHS Compliant	Yes
Depth	2.13 inch
Height	1.14 inch
Width	1.14 inch
Weight	0.04 pound

Characteristics

Range Of Product	Harmony XB7
Product Or Component Type	Pilot light
Device Short Name	XB7
Mounting Diameter	0.87 in (22 mm)
Sale Per Indivisible Qty	10
Operator Add Information	With plain lens
Light Source	Incandescent
Device Presentation	Monolithic product
Height	1.14 in (29 mm)
Width	1.14 in (29 mm)
Depth	2.13 in (54 mm)
Terminals Description ISO n°1	(X1-X2)PL
Product Weight	0.04 lb(US) (0.02 kg)
Overvoltage Category	Class II IEC 60536
Device Mounting	Fixing hole 0.89 in (22.5 mm) 22.3 +0.4/0 EN/IEC 60947-5-1
Fixing Center	>= 30 x 40 mm support panel) metal 0.04…0.24 in (1…6 mm) >= 30 x 40 mm support panel) plastic 0.08…0.24 in (2…6 mm)
Fixing Mode	Fixing nut beneath head 17.70…21.24 lbf.in (2…2.4 N.m)
Shape Of Signaling Unit Head	Round
Cap/Operator Or Lens Colour	Orange
Connections - Terminals	Faston connectors 6.35 x 0.8 mm EN/IEC 60947-1 Forked type tag connectors 6.5 mm EN/IEC 60947-1 Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
Tightening Torque	7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
Shape Of Screw Head	Cross JIS No 1 Cross Philips no 1 Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm
Ui Rated Insulation Voltage	250 V 3)EN/IEC 60947-1
Uimp Rated Imp Wstd Voltage	6 kV EN/IEC 60947-1
Signalling Type	Steady
Bulb Base	BA 9s
Light Block Supply	Direct through resistor <2.6 W 130 V
Us Rated Supply Voltage	230 V AC 50/60 Hz
Supply Voltage Limits	195…264 V AC
Service Life	2000 h at rated voltage and 25 °C
Compatibility Code	XB7
Protective Treatment	TH
Ambient Air Temp For Storage	-40…158 °F (-40…70 °C)
Ambient Air Temp For Op	-13…131 °F (-25…55 °C)
IP Degree Of Protection	IP20 IEC 60529 rear face) IP54 IEC 60529 front face)
Nema Degree Of Protection	NEMA 12
Standards	JIS C8201-5-1 EN/IEC 60947-1 EN/IEC 60947-5-1 UL 508 CSA C22.2 No 14 JIS C8201-1
Vibration Resistance	5 gn 2…500 Hz)IEC 60068-2-6
Shock Resistance	50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Electromagnetic Compatibility	Disturbing field emissionclass B EN 55011
GTIN	03389110069679
Green Premium Status	Green Premium product
REACh Free Of SVHC	Yes
EU RoHs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Toxic Heavy Metal Free	Yes
Mercury Free	Yes
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Warranty	18 months
