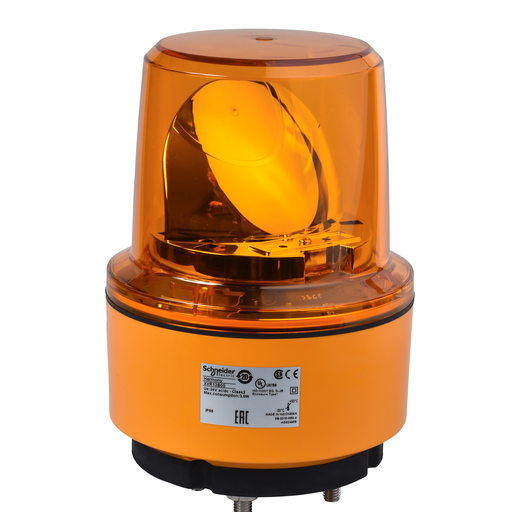

XVR13B05
Rotating beacon, 130 mm, orange, without buzzer, 24 V DC
This rotating mirror is part of the range of pre-wired rotating/flashing beacons Harmony XVR. It is supplied complete, pre-cabled without buzzer. It features orange super bright LED light source and it can be supplied with 24V DC. It provides good illuminating power and a long service life (reduced time for maintenance) thanks to its super-bright LED. Its protection index is IP66. It weighs 800g, its diameter is 130mm and it is 179mm high. It provides PC (polycarbonate) globe and ABS (acrylonitrile butadiene-styrene) body part. It is designed for long distance signaling applications, used mainly in the iron and steel industry, on industrial handling vehicles or for safety applications. It is CE, UL and CSA certified.
Add to Quote CatalogueSpecifications
| Part Number | XVR13B05 |
|---|---|
| Country of Origin | ID |
| UPC | 785901686323 |
| UPC11 | 78590168632 |
| EAN | 3606480033308 |
| Availability | S |
| Lead Time | 52 |
| UNSPSC | 32151503 |
| ECCN | EAR99 |
| HTs Code | 8531809026 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | XV |
| Return Indicator | No |
| Weight | 1.76 pound |
Characteristics
| Range Of Product | Harmony XVR |
|---|---|
| Product Or Component Type | Prewired rotating mirror beacon |
| Sound Signalling | Without |
| Device Short Name | XVR |
| Mounting Diameter | 5.12 in (130 mm) |
| IP Degree Of Protection | IP66 IEC 60529 resistant to vibration) |
| Us Rated Supply Voltage | 24 V DC |
| Light Source | High luminosity LED, orange |
| Material | ABS (acrylonitrile butadiene-styrene) body part PC globe |
| Cad Overall Width | 5.12 in (130 mm) |
| Cad Overall Depth | 5.12 in (130 mm) |
| Product Weight | 1.76 lb(US) (0.8 kg) |
| Marking | CE |
| Product Mounting | By 3 M8 screws |
| Supply Voltage Limits | 19…30 V DC |
| Uimp Rated Imp Wstd Voltage | 0.8 kV |
| Current Consumption | 125 mA |
| Flashing Frequency | 2.7 Hz |
| Clamping Connection Capacity | 1.25 mm² |
| Awg Gauge | AWG 18 |
| Cable Length | 15.75 in (400 mm) |
| Standards | EN 61000-6-2 EN 61000-6-4 |
| Protective Treatment | TC |
| Ambient Air Temp For Storage | -31…158 °F (-35…70 °C) |
| Ambient Air Temp For Op | -22…122 °F (-30…50 °C) |
| Electrical Shock Protect Class | Class II IEC 61140 |
| Category | 22617 - XVC TOWER LIGHTS |
| Discount Schedule | XV |
| GTIN | 00785901686323 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | ID |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| Warranty | 18 months |
