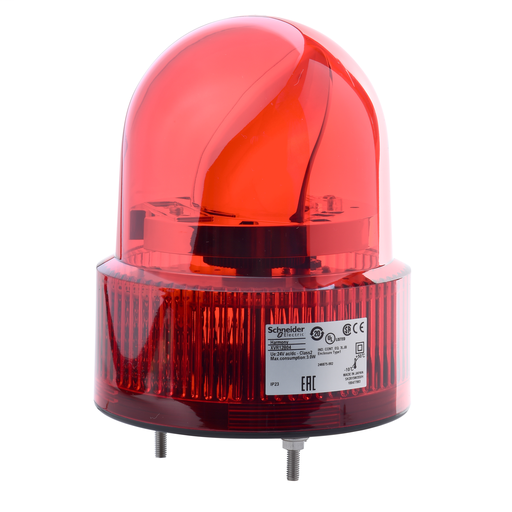

Rotating beacon, 120 mm, red, with buzzer 50…90 dB, 24 V AC DC
This rotating mirror is part of the range of pre-wired rotating/flashing beacons Harmony XVR. It is supplied complete, pre-cabled with a buzzer integrated (adjustable sound level from 50dB to 90dB at 1 m). It features red super bright LED light source and it can be supplied with 24V AC/DC. It provides good illuminating power and a long service life (reduced time for maintenance) thanks to its super-bright LED. Its protection index is IP23. It weighs 500g, its diameter is 130mm and it is 150mm high. It provides AS globe and ABS (acrylonitrile butadiene-styrene) body part. It is designed for long distance signaling applications, used mainly in the iron and steel industry, on industrial handling vehicles or for safety applications. It is CE, UL and CSA certified.
Add to Quote CatalogueSpecifications
| Part Number | XVR12B04S |
|---|---|
| Country of Origin | JP |
| UPC | 785901557197 |
| UPC11 | 78590155719 |
| EAN | 3606480033230 |
| Availability | S |
| Lead Time | 41 |
| UNSPSC | 32151503 |
| ECCN | EAR99 |
| HTs Code | 8531809026 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | XV |
| Return Indicator | No |
| Weight | 1.10 pound |
Characteristics
| Range Of Product | Harmony XVR |
|---|---|
| Product Or Component Type | Prewired rotating mirror beacon |
| Sound Signalling | Buzzer |
| Device Short Name | XVR |
| Mounting Diameter | 4.72 in (120 mm) |
| IP Degree Of Protection | IP23 IEC 60529 |
| Us Rated Supply Voltage | 24 V AC/DC |
| Light Source | High luminosity LED, red |
| Noise Level | 50…90 dB continuous or intermittent tone)1 m |
| Material | ABS (acrylonitrile butadiene-styrene) body part AS globe |
| Cad Overall Width | 4.72 in (120 mm) |
| Cad Overall Depth | 4.72 in (120 mm) |
| Product Weight | 1.10 lb(US) (0.5 kg) |
| Marking | CE |
| Product Mounting | By 3 M5 screws |
| Supply Voltage Limits | 19…30 V DC 21.6…26.4 V AC |
| Uimp Rated Imp Wstd Voltage | 0.8 kV |
| Current Consumption | 196 mA |
| Flashing Frequency | 2.3 Hz |
| Clamping Connection Capacity | 0.83 mm² |
| Awg Gauge | AWG 18 |
| Cable Length | 15.75 in (400 mm) |
| Standards | EN 61000-6-4 EN 61000-6-2 |
| Protective Treatment | TC |
| Ambient Air Temp For Storage | -31…158 °F (-35…70 °C) |
| Ambient Air Temp For Op | 14…122 °F (-10…50 °C) |
| Electrical Shock Protect Class | Class II IEC 61140 |
| Category | 22617 - XVC TOWER LIGHTS |
| Discount Schedule | XV |
| GTIN | 00785901557197 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | JP |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| Warranty | 18 months |
