XVR12B05S

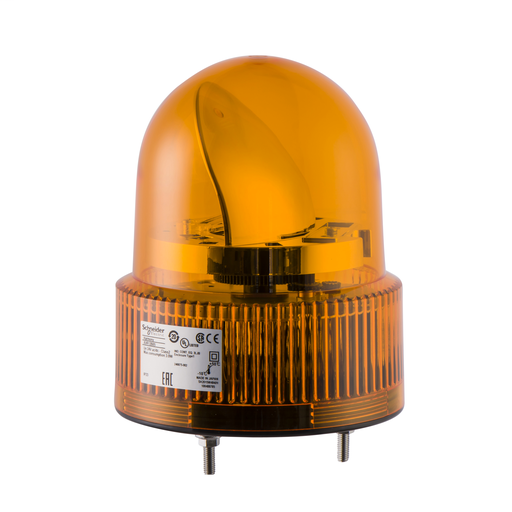

Rotating beacon, 120 mm, orange, with buzzer 50…90 dB, 24 V AC DC
This orange beacon is part of the range of rotating beacons Harmony XVR diameter 120mm. It is supplied complete with a buzzer and pre-cabled. Supply voltage is 24V AC/DC and degree of protection is IP 23. It is designed for long distance signaling applications, thanks to the use of “super-bright” LED which provides good illuminating power, a long service life and reduced time for maintenance and also energy saving. It is used mainly in the iron and steel industry, on industrial handling vehicles or for safety applications.
Add to Quote CatalogueSpecifications
| Part Number | XVR12B05S |
|---|---|
| Country of Origin | JP |
| UPC | 785901557203 |
| UPC11 | 78590155720 |
| EAN | 3606480033247 |
| Availability | S |
| Lead Time | 24 |
| UNSPSC | 32151503 |
| ECCN | EAR99 |
| HTs Code | 8531809026 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | XV |
| Return Indicator | No |
| Weight | 1.10 pound |
Characteristics
| Range Of Product | Harmony XVR |
|---|---|
| Product Or Component Type | Prewired rotating mirror beacon |
| Sound Signalling | Buzzer |
| Device Short Name | XVR |
| Mounting Diameter | 4.72 in (120 mm) |
| IP Degree Of Protection | IP23 IEC 60529 |
| Us Rated Supply Voltage | 24 V AC/DC |
| Light Source | High luminosity LED, orange |
| Noise Level | 50…90 dB continuous or intermittent tone)1 m |
| Material | ABS (acrylonitrile butadiene-styrene) body part AS globe |
| Cad Overall Width | 4.72 in (120 mm) |
| Cad Overall Depth | 4.72 in (120 mm) |
| Product Weight | 1.10 lb(US) (0.5 kg) |
| Marking | CE |
| Product Mounting | By 3 M5 screws |
| Supply Voltage Limits | 19…30 V DC 21.6…26.4 V AC |
| Uimp Rated Imp Wstd Voltage | 0.8 kV |
| Current Consumption | 196 mA |
| Flashing Frequency | 2.3 Hz |
| Clamping Connection Capacity | 0.83 mm² |
| Awg Gauge | AWG 18 |
| Cable Length | 15.75 in (400 mm) |
| Standards | EN 61000-6-4 EN 61000-6-2 |
| Protective Treatment | TC |
| Ambient Air Temp For Storage | -31…158 °F (-35…70 °C) |
| Ambient Air Temp For Op | 14…122 °F (-10…50 °C) |
| Electrical Shock Protect Class | Class II IEC 61140 |
| Category | 22617 - XVC TOWER LIGHTS |
| Discount Schedule | XV |
| GTIN | 00785901557203 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | JP |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| Warranty | 18 months |
