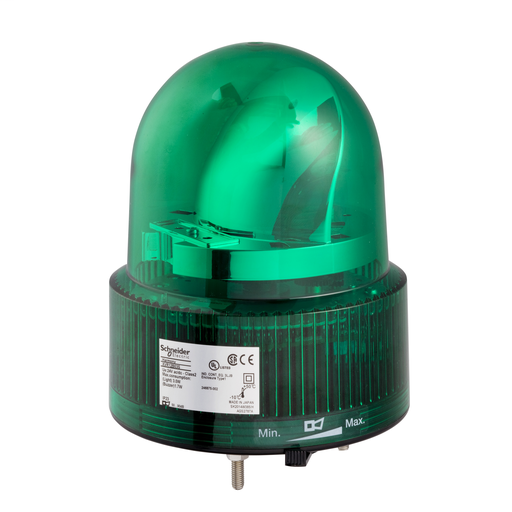

XVR12B03S
Rotating beacon, 120 mm, green, with buzzer 50…90 dB, 24 V AC DC
Specifications
| Part Number | XVR12B03S |
|---|---|
| Country of Origin | JP |
| UPC | 785901557227 |
| UPC11 | 78590155722 |
| EAN | 3606480033254 |
| Availability | S |
| Lead Time | 23 |
| UNSPSC | 32151503 |
| ECCN | EAR99 |
| HTs Code | 8531809026 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | XV |
| Return Indicator | No |
| Weight | 1.10 pound |
Characteristics
| Range Of Product | Harmony XVR |
|---|---|
| Product Or Component Type | Prewired rotating mirror beacon |
| Sound Signalling | Buzzer |
| Device Short Name | XVR |
| Mounting Diameter | 4.72 in (120 mm) |
| IP Degree Of Protection | IP23 IEC 60529 |
| Us Rated Supply Voltage | 24 V AC/DC |
| Light Source | High luminosity LED, green |
| Noise Level | 50…90 dB continuous or intermittent tone)1 m |
| Material | ABS (acrylonitrile butadiene-styrene) body part AS globe |
| Cad Overall Width | 4.72 in (120 mm) |
| Cad Overall Depth | 4.72 in (120 mm) |
| Product Weight | 1.10 lb(US) (0.5 kg) |
| Marking | CE |
| Product Mounting | By 3 M5 screws |
| Supply Voltage Limits | 19…30 V DC 21.6…26.4 V AC |
| Uimp Rated Imp Wstd Voltage | 0.8 kV |
| Current Consumption | 196 mA |
| Flashing Frequency | 2.3 Hz |
| Clamping Connection Capacity | 0.83 mm² |
| Awg Gauge | AWG 18 |
| Cable Length | 15.75 in (400 mm) |
| Standards | EN 61000-6-2 EN 61000-6-4 |
| Protective Treatment | TC |
| Ambient Air Temp For Storage | -31…158 °F (-35…70 °C) |
| Ambient Air Temp For Op | 14…122 °F (-10…50 °C) |
| Electrical Shock Protect Class | Class II IEC 61140 |
| Category | 22617 - XVC TOWER LIGHTS |
| Discount Schedule | XV |
| GTIN | 00785901557227 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | JP |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| Warranty | 18 months |
