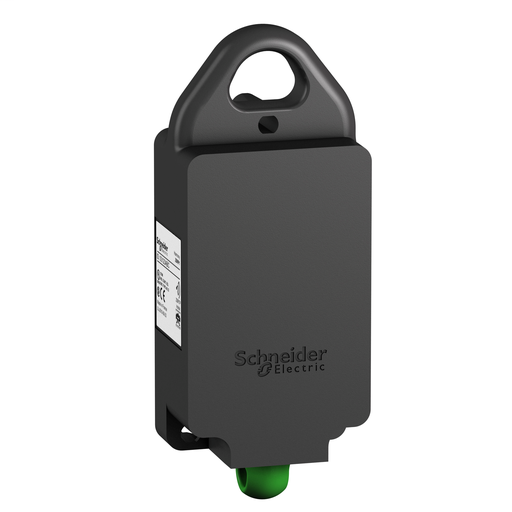

ZBRP1
Rope pull switch wireless & batteryless
This rope pull switch is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It features a rope pull switch with wireless and batteryless transmitter. Its pulling force is from 45N to 1000N. The rope pull switch is adapted for automatic doors. It sends a radio message to the receiver in the control panel to open and close the door. It operates with the protocol Zigbee green power 2.4 GHz in compliance with IEEE 802.15.4. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It weighs 150g.
Add to Quote CatalogueSpecifications
| Part Number | ZBRP1 |
|---|---|
| Country of Origin | FR |
| UPC | 785901307679 |
| UPC11 | 78590130767 |
| EAN | 3606480571732 |
| Availability | N |
| Lead Time | 36 |
| UNSPSC | 39122216 |
| HTs Code | 8526925000 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | I |
| Return Indicator | Yes |
| Weight | 0.33 pound |
Characteristics
| Range Of Product | Harmony XB5 |
|---|---|
| Product Or Component Type | Wireless and batteryless transmitter |
| Device Short Name | XB5R |
| Bezel Material | Plastic |
| Transmission Frequency | 2405 MHz |
| Emission Class | 5M00G7W |
| Antenna Type | Omnidirectional |
| Max Power Consumption In W | 1 mW |
| Number Of Channels | 1 |
| Modulation Technique | O-QPSK |
| Bandwidth | 5 MHz |
| Antenna Gain | 0 dBi |
| Cad Overall Height | 5.67 in (144 mm) |
| Cad Overall Width | 2.20 in (56 mm) |
| Cad Overall Depth | 1.50 in (38 mm) |
| Product Weight | 0.33 lb(US) (0.15 kg) |
| Pulling Force | 45…1000 N |
| Mechanical Robustness | Free fall resistance 1000 mm EN/IEC 60068-2-32 |
| Standards | CSA C22.2 No 14 EN/IEC 60947-5-1 UL 508 EN/IEC 60947-1 |
| Radio Agreement | ANATEL ARIB T66 FCC ICASA RSS SRRC |
| Communication Port Protocol | Zigbee green power 2.4 GHz IEEE 802.15.4 |
| Maximum Sensing Distance | 328.08 ft (100 m) in free field 82.02 ft (25 m) transmitter in a plastic box type XAL D and receiver in a metal enclosure 984.25 ft (300 m) transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna |
| Acquisition Time | 2 ms |
| Response Time | < 2 ms |
| Emission Power | 3 mW |
| Fixing Mode | By screw 15.93…19.47 lbf.in (1.8…2.2 N.m) |
| Mounting Mode | Between 2 ropes Panel-mounted |
| Operating Position | Any position |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -13…158 °F (-25…70 °C) |
| Relative Humidity | 95 % 158 °F (70 °C) without condensation |
| IP Degree Of Protection | IP66 IEC 60529 outdoor) |
| Nema Degree Of Protection | NEMA 4X outdoor |
| IK Degree Of Protection | IK05 IEC 50102 |
| Mechanical Durability | 1000000 cycles |
| Shock Resistance | 25 gn 6 ms) 6000 shocks IEC 60068-2-27 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration Resistance | 5 gn 11…500 Hz)IEC 60068-2-6 +/- 10 mm 2…11 Hz)IEC 60068-2-6 |
| Electromagnetic Compatibility | Electrostatic discharge immunity test 8 kV in free air (in insulating parts)) Electrostatic discharge immunity test 6 kV on contact (on metal parts)) Susceptibility to electromagnetic fields 10 V/m 80...2000 MHz) Susceptibility to electromagnetic fields 3 V/m 80...2700 MHz, distance = 20 m) Immunity for industrial environments Radiated emission |
| Product Certifications | CCC BT 2006/95/EC CSA UL C-tick GOST |
| Directives | 1999/5/EC - R&TTE directive 2004/108/EC - electromagnetic compatibility |
| Category | 22470 - XB5R WIRELESS PUSH BUTTON |
| Discount Schedule | I |
| GTIN | 00785901307679 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | FR |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
