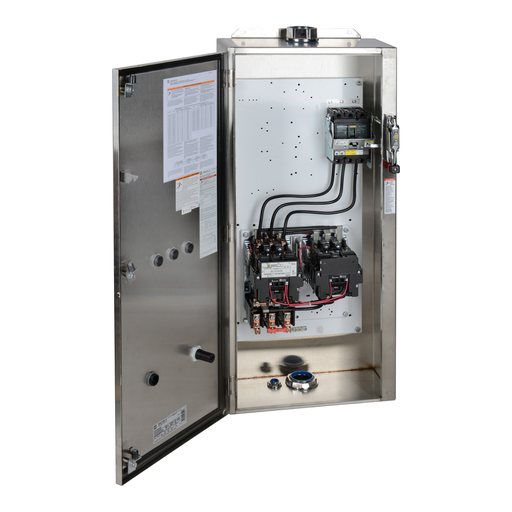

REVERSING COMBO STARTER 600VAC 90A NEM
8739SEW42V02S
REVERSING COMBO STARTER 600VAC 90A NEM
Specifications
Part Number 8739SEW42V02S
UNSPSC 39121521
Prop 65 This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
Return Indicator No
Characteristics
Product Combination Starter
Type S
Control Circuit Type Separate control circuit
Control Units No control units
Enclosure Type NEMA 4/4X brushed stainless steel with external reset
Auxiliary Contacts Without
Horsepower Rating 15…25 hp 200 V AC 15…30 hp 230 V AC 30…50 hp 460 V AC 40…50 hp 575 V AC
Number Of Poles 3P
Maximum Voltage Rating 600 V AC
Nema Size 3
Control Circuit Voltage 110 V AC 50 Hz 120 V AC 60 Hz
Pilot Light No indicator
Starter Type Reversing
Overload Type melting alloy
Number Of Thermal Units Required 3
Disconnect Type Mag-Gard circuit breaker
Category 21297 - 8738,39 W/STAINLESS ENCLOS
Discount Schedule CP1
Nbr. Of Units In Pkg. 1
Country Of Origin MX
EU RoHs Directive Not compliant
Warranty 18 months
