ZBRA1

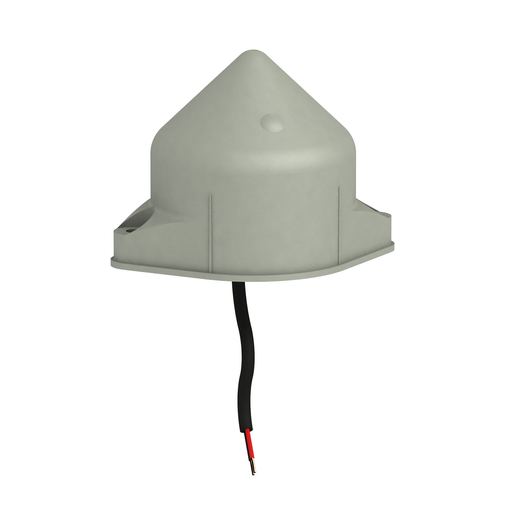

Relay Antenna, AC/DC, 5m cable output
This relay antenna is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. Installed between transmitter and receiver it is used to increase the range and/or get round obstacles. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.
Add to Quote CatalogueSpecifications
| Part Number | ZBRA1 |
|---|---|
| Country of Origin | ID |
| UPC | 785901461531 |
| UPC11 | 78590146153 |
| EAN | 3606480334689 |
| Availability | N |
| Lead Time | 58 |
| UNSPSC | 39122216 |
| HTs Code | 8529102120 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | I |
| Return Indicator | Yes |
| Weight | 0.44 pound |
Characteristics
| Range Of Product | Harmony XB5R |
|---|---|
| Product Or Component Type | Wireless and batteryless range |
| Device Short Name | ZBRA |
| Product Destination | Wireless Schneider Electric ecosystem devices |
| Control Station Application | Transceiver (emission and reception) |
| Colour Of Base Of Enclosure | Black RAL 9011) |
| Colour Of Cover | Transparent |
| Material | Polycarbonate |
| Frequency | 2405 MHz transmitter 2405 MHz receiver |
| Emission Class | 5M00G7W |
| Antenna Type | Omnidirectional |
| Communication Port Protocol | Zigbee green power 2.4 GHz IEEE 802.15.4 |
| Antenna Gain | 0 dBi |
| Maximum Sensing Distance | 984.25 ft (300 m) transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna |
| Emission Power | 3 mW |
| [Us] Rated Supply Voltage | 24...240 V AC/DC 50/60 Hz - 10...10 % |
| Power Consumption In W | 4 W AC/DC |
| Operating Position | Vertical |
| Status Led | 1 LED Green power ON 1 LED Green emission signal |
| Overvoltage Category | III IEC 60664-1 |
| Wstd Insulation Voltage Level | 4 kV 50 Hz EN/IEC 60947-5-1 |
| Uimp Rated Imp Wstd Voltage | 4 kV |
| Electrical Connection | 2 conductors cable 0.00 in² (0.34 mm²) - flexible - 16.40 ft (5 m) EN/IEC 60947-1 |
| Tightening Torque | 5.31 lbf.in (0.6 N.m) EN/IEC 60947-1 |
| Housing Material | Self-extinguishing plastic |
| Short-Circuit Protection | 0.4 A fuse fast blow |
| Max Power Consumption In W | 1 mW |
| Number Of Channels | 1 |
| Modulation Technique | O-QPSK |
| Bandwidth | 5 MHz |
| Product Weight | 0.44 lb(US) (0.2 kg) |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Relative Humidity | 90 % -4…131 °F (-20…55 °C), without condensation ETSI EN 300 440-1 |
| Electrical Shock Protect Class | Class II IEC 61140 |
| IP Degree Of Protection | IP65 IEC 60529 131 °F (55 °C) 0.1 m |
| Pollution Degree | 3 IEC 60664-1 |
| IK Degree Of Protection | IK03 EN 50102 |
| Radio Agreement | RSS SRRC ANATEL, type III ETSI EN 301 489-3 ARIB T66, class 2 ETSI EN 301 489-3 FCC, category 2 ETSI EN 300 440-1 ICASA, category 1 ETSI EN 300 440-1 |
| Product Certifications | CCC BT 2006/95/EC UL GOST CSA CE C-tick |
| Directives | 1999/5/EC - R&TTE directive 2004/108/EC - electromagnetic compatibility |
| Vibration Resistance | +/-0.5 mm 10…55 Hz)IEC 60068-2-6 6 gn 55…150 Hz)IEC 60068-2-6 |
| Shock Resistance | 25 gn 6 ms) 6000 shocks IEC 60068-2-27 15 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Insulation Resistance | > 500 MOhm 500 V DC NF C 20030 |
| Ui Rated Insulation Voltage | 250 V IEC 60664-1 |
| Electromagnetic Compatibility | Immunity for industrial environments EN/IEC 61000-6-2 Conducted and radiated emissionsclass B CISPR 22 Electrostatic discharge immunity test 8 kV in free air (in insulating parts)) IEC 61000-4-2 Electrostatic discharge immunity test 6 kV on contact (on metal parts)) IEC 61000-4-2 Susceptibility to electromagnetic fields 10 V/m 80...2000 MHz) IEC 61000-4-3 Susceptibility to electromagnetic fields 3 V/m 80...2700 MHz, distance = 20 m) IEC 61000-4-3 Electrical fast transient/burst immunity test 2 kV IEC 61000-4-4 1.2/50 µs shock waves immunity test 1 kV differential mode) IEC 61000-4-5 1.2/50 µs shock waves immunity test 2 kV common mode) IEC 61000-4-5 Conducted RF disturbances 10 V IEC 61000-4-6 Immunity to microbreaks and voltage drops IEC 61000-4-11 Radiated emission ETSI EN 300 440-1 Conducted emission EN 300-489-1 Conducted emission ETSI EN 300 489-3 Radiated emission ETSI EN 300 440-2 |
| Category | 22470 - XB5R WIRELESS PUSH BUTTON |
| Discount Schedule | I |
| GTIN | 00785901461531 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | ID |
