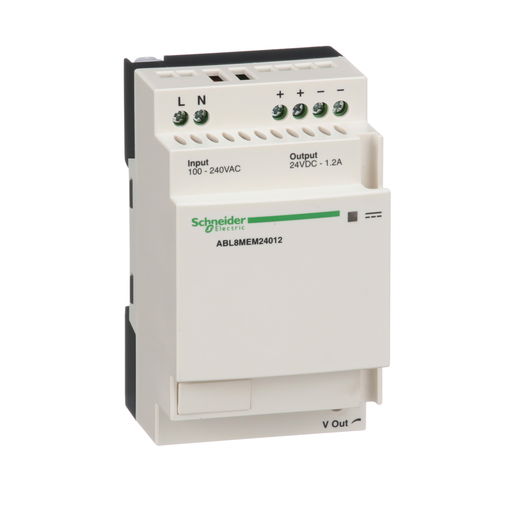

ABL8MEM24012 - Regulated power supply, Phaseo, 100 to 240 V, 24 V, 1.2 A

ABL8MEM24012

Regulated power supply, Phaseo, 100 to 240 V, 24 V, 1.2 A

This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 1.2A at 24V DC and a rated power output of 30W. Most of these power supplies have auto protection reset. A few have auto / manual protection reset. Some of these power supplies can be mounted directly to a panel. It installs easily on DIN rail and is 54mm-wide. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It provides a power reserve allowing to deliver a current of 150% its nominal rating for a short time allows handling of simultaneous inrush current when starting a process. It has LED diagnostics indicator available in the front for troubleshooting instantly.

Add to Quote Catalogue

Specifications

Part Number	ABL8MEM24012
Country of Origin	CN
UPC	785901551508
UPC11	78590155150
EAN	3389119405560
Availability	S
Lead Time	43
UNSPSC	39121022
ECCN	EAR99
HTs Code	8504409510
Prop 65	This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
RoHS Compliant	Yes
Discount Schedule	CP12
Return Indicator	Yes
Depth	2.32 inch
Height	3.94 inch
Width	2.13 inch
Weight	0.43 pound

Characteristics

Range Of Product	Modicon Power Supply
Product Or Component Type	Power supply
Power Supply Type	Regulated switch mode
Nominal Input Voltage	100...240 V AC phase to phase L1-L2 100...240 V AC single phase N-L1 120...250 V DC
Input Voltage Limits	85...264 V AC
Rated Power In W	30 W
Output Voltage	24 V DC
Power Supply Output Current	1.2 A
Input Protection Type	Integrated fuse (not interchangeable)
Inrush Current	20 A
Power Factor	0.5 at 24 V DC
Efficiency	82 %
Output Voltage Adjustment	22.2...28.8 V adjustable
Power Dissipation In W	6.6 W
Current Consumption	0.4 A 240 V AC 0.65 A 100 V AC
Residual Ripple	250 mV
Output Protection Type	Against short-circuits
Connections - Terminals	Screw type terminals 2 x 0.14...2 x 2.5 mm², AWG 26...AWG 14) input connection Screw type terminals 4 x 0.14...4 x 2.5 mm², AWG 26...AWG 14) output connection
Status Led	Output voltage 1 LED Green)
Depth	2.32 in (59 mm)
Height	3.94 in (100 mm)
Width	2.13 in (54 mm)
Product Weight	0.43 lb(US) (0.195 kg)
Output Coupling	Parallel Series
Marking	CE
Mounting Support	35 x 7.5 mm symmetrical DIN rail panel 2 screws, diameter : 4 mm 35 x 15 mm symmetrical DIN rail
Operating Position	Vertical
Standards	UL 508 CSA C22.2 No 60950-1
Product Certifications	TUV 60950-1 EAC RCM KC CCSAus CSA 22-2 No 950 CULus 508
Environmental Characteristic	EMC EN 55022 Class B EMC EN 61000-6-3 EMC EN/IEC 61000-6-2 EMC EN/IEC 61204-3 Safety EN/IEC 60950-1 Safety SELV
Operating Altitude	6561.68 ft (2000 m)
IP Degree Of Protection	IP20 EN/IEC 60529
Ambient Air Temp For Op	-13…131 °F (-25…55 °C) without) 131…158 °F (55…70 °C) with derating factor)
Ambient Air Temp For Storage	-40…158 °F (-40…70 °C)
Relative Humidity	0…90 % during operation 0…95 % in storage
Dielectric Strength	3000 V between input and output
Category	22525 - ABL8 AND ABL7 POWER SUPPLIE
Discount Schedule	CP12
GTIN	00785901551508
Nbr. Of Units In Pkg.	1
Country Of Origin	CN
Green Premium Status	Green Premium product
EU RoHs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Mercury Free	Yes
Pvc Free	Yes
Warranty	18 months
